Plug-and-play aftermarket replacement CDI box for Mercury outboard motors from RM Stator. Refer to fitment guide for models.



Dimensions:

  • Width: 79mm
  • Length: 136mm
  • Height: 26mm
  • Fixation holes centre to centre: 143mm



Installation:

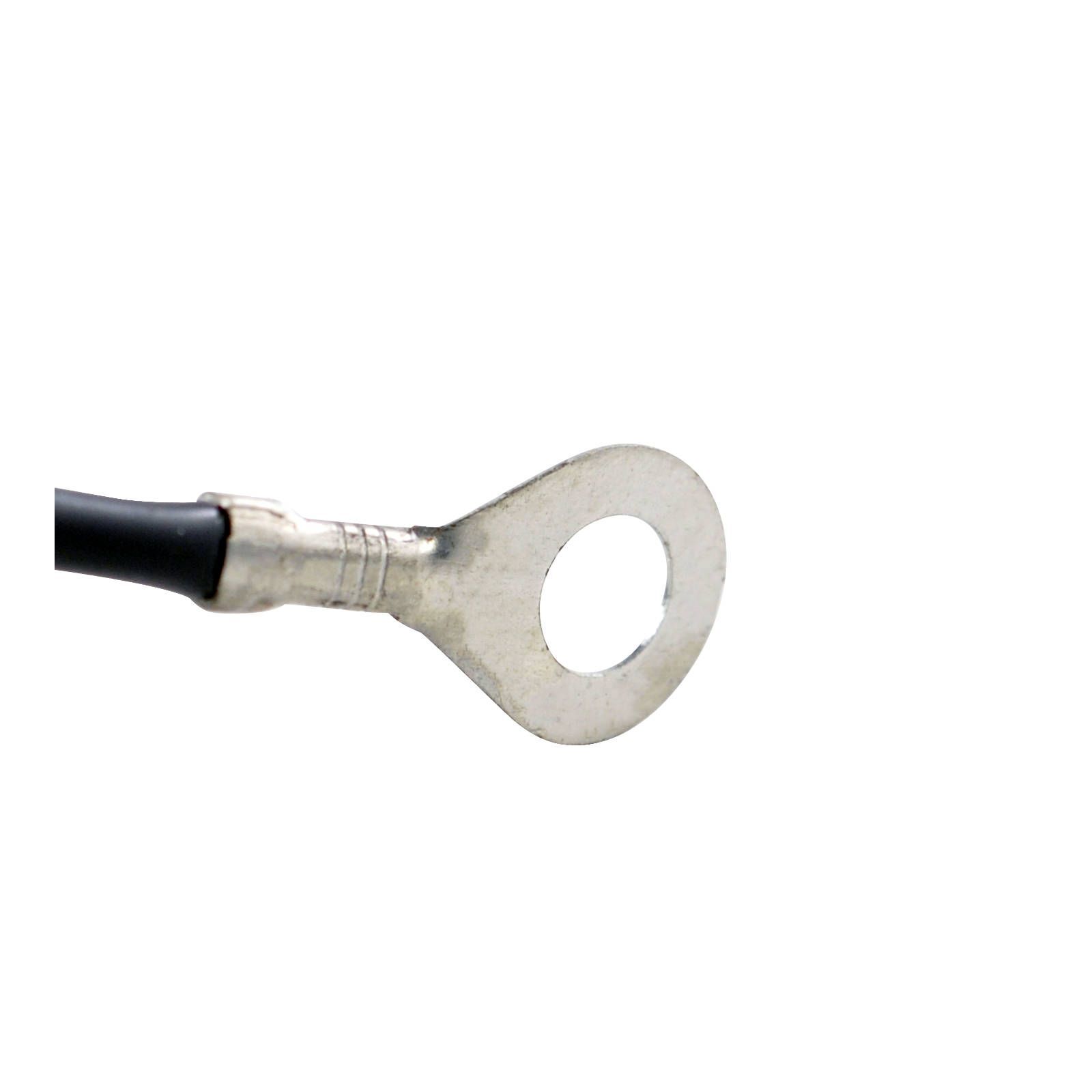

  • If the Black Ground Wire is Not Already Connected to the CDI Box fasten to One of the 4 Mounting Holes on the Outside of the Box
  • Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
  • If the Engine Uses an Orange Colored Lead That is Connected to the Box Connect This to the Black/Yellow Stud on the New Box.

(WPS-RMS030100048)

SKU WPS-RMS030100048
Brand Whites
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
