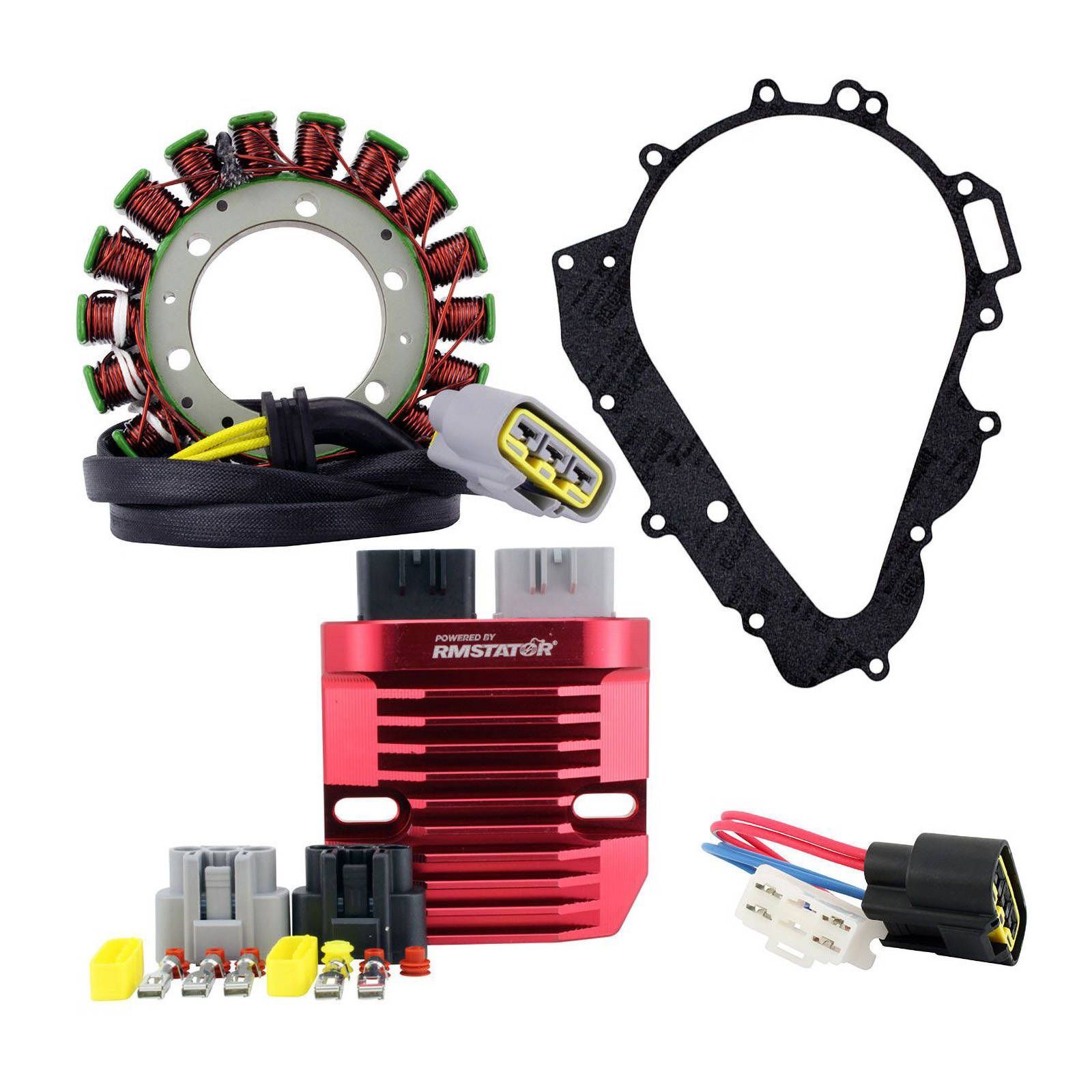

Brand new aftermarket Stator + Machined Aluminum Mosfet Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

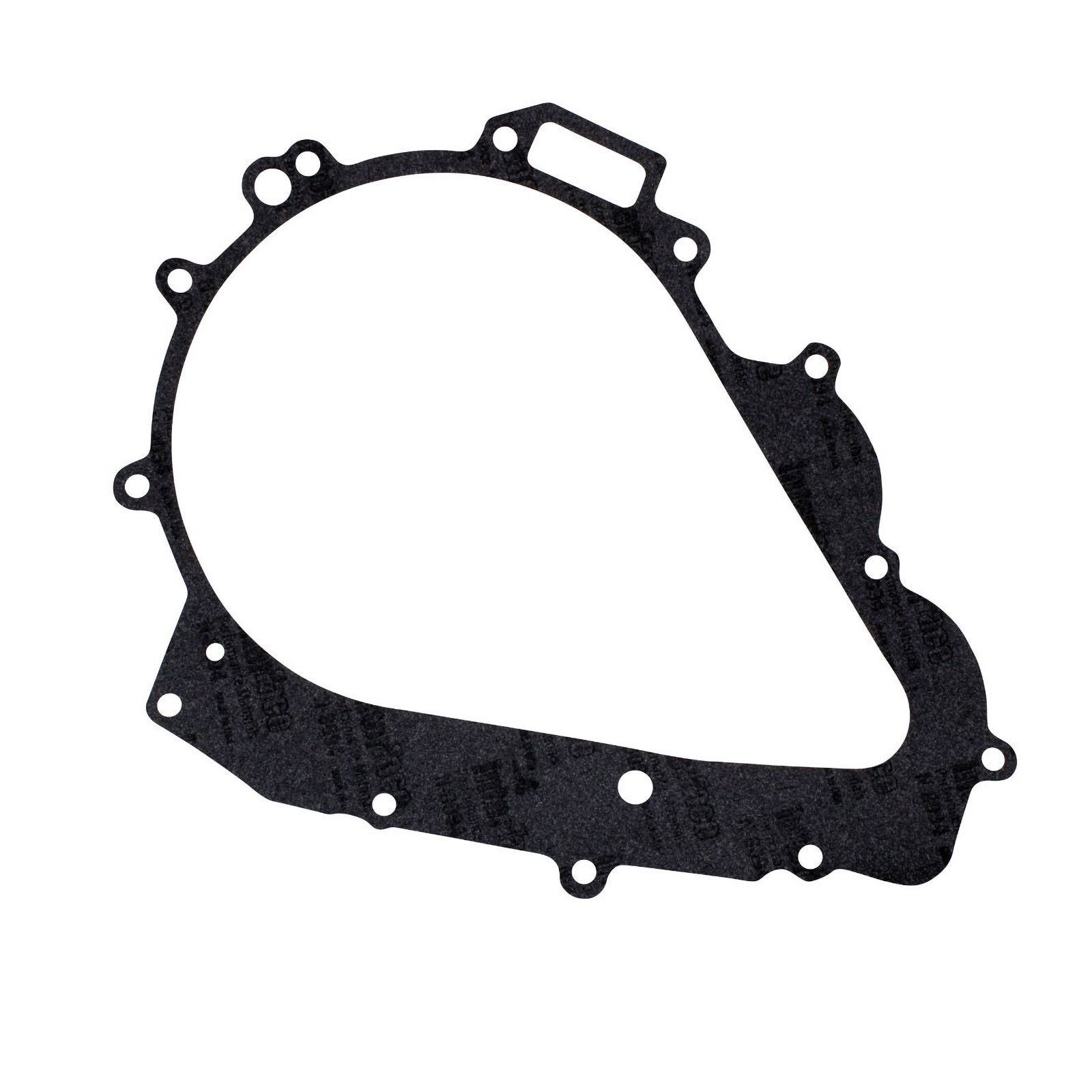

  • Harness and Gasket Included
  • Include 3X OF M6-1.00 X 30 Allen socket head
  • All shipped products are tested

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Tow pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

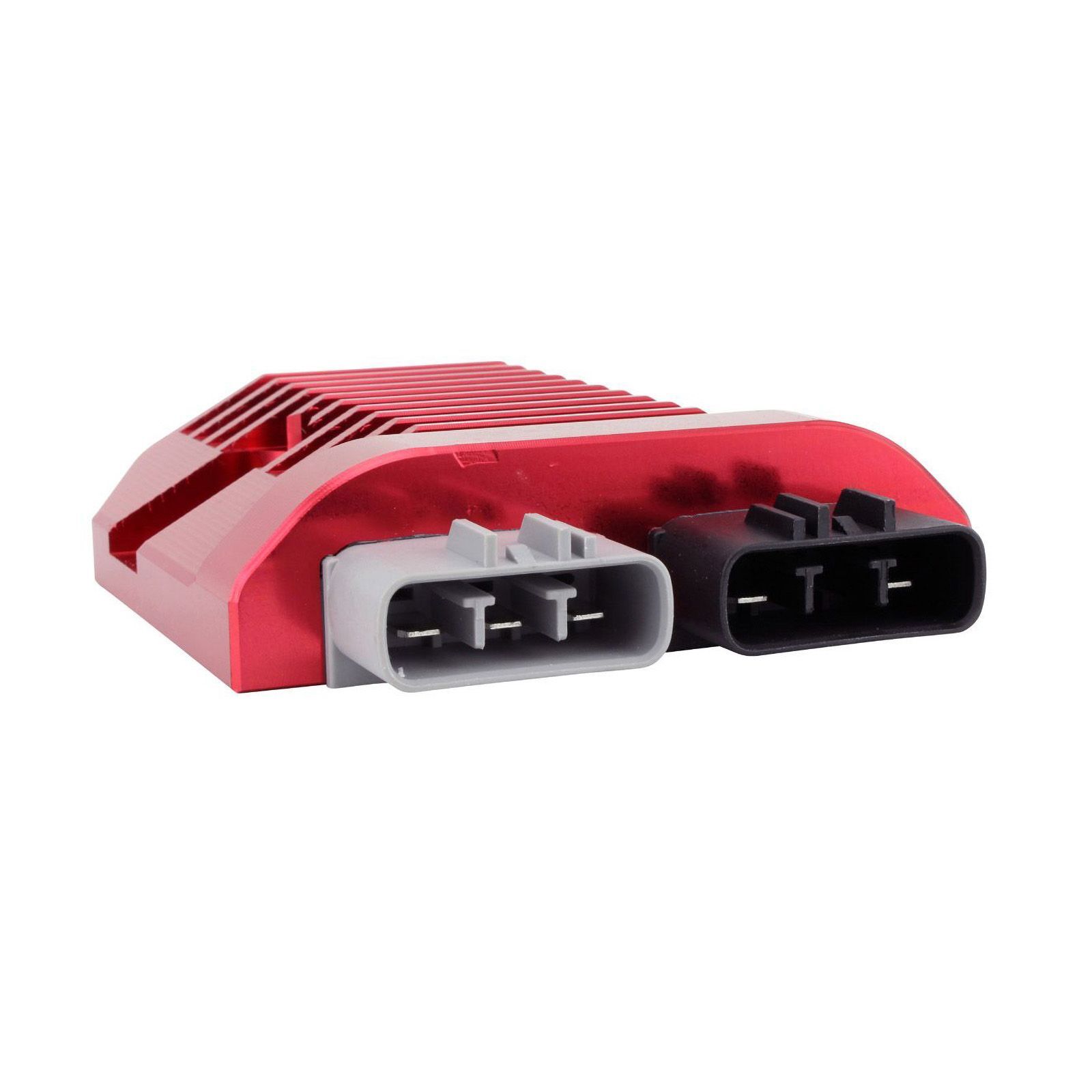

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATOR machined aluminium Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminium heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

Why use Mosfet Enhanced technology?

  • Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
  • Saves gas: Less load on the stator, less work, less fuel is used and you save.
  • Regulated energy: The power charging your battery is steadier and smooth.
  • Extended battery life: Extends the battery’s life and cold cranking capacity.
  • More engine power: Removes stator load resulting in more engine power.
  • Optimized power: Optimize power delivery by switching the stator coils on or off.
  • With Enhance Technology design: This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Stator Dimensions

  • Interior diameter: 54mm
  • Exterior diameter: 115mm
  • Thickness: 14mm
  • Length of wires stator to grommet: 160mm
  • Length of wires grommet to plug: 1180mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire to wire resistance:

  • Alternator 3p: Yellow to Yellow = 0.8 ohms +-20%
  • Pickup: Green to Blue = 500 ohms +-20%

Regulator Dimensions:

  • Width: 103mm
  • Length: 103mm
  • Height: 28mm
  • Distance between fixation holes centre to centre: 80mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(WPS-RMS900106902)

SKU WPS-RMS900106902
Brand Whites
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
