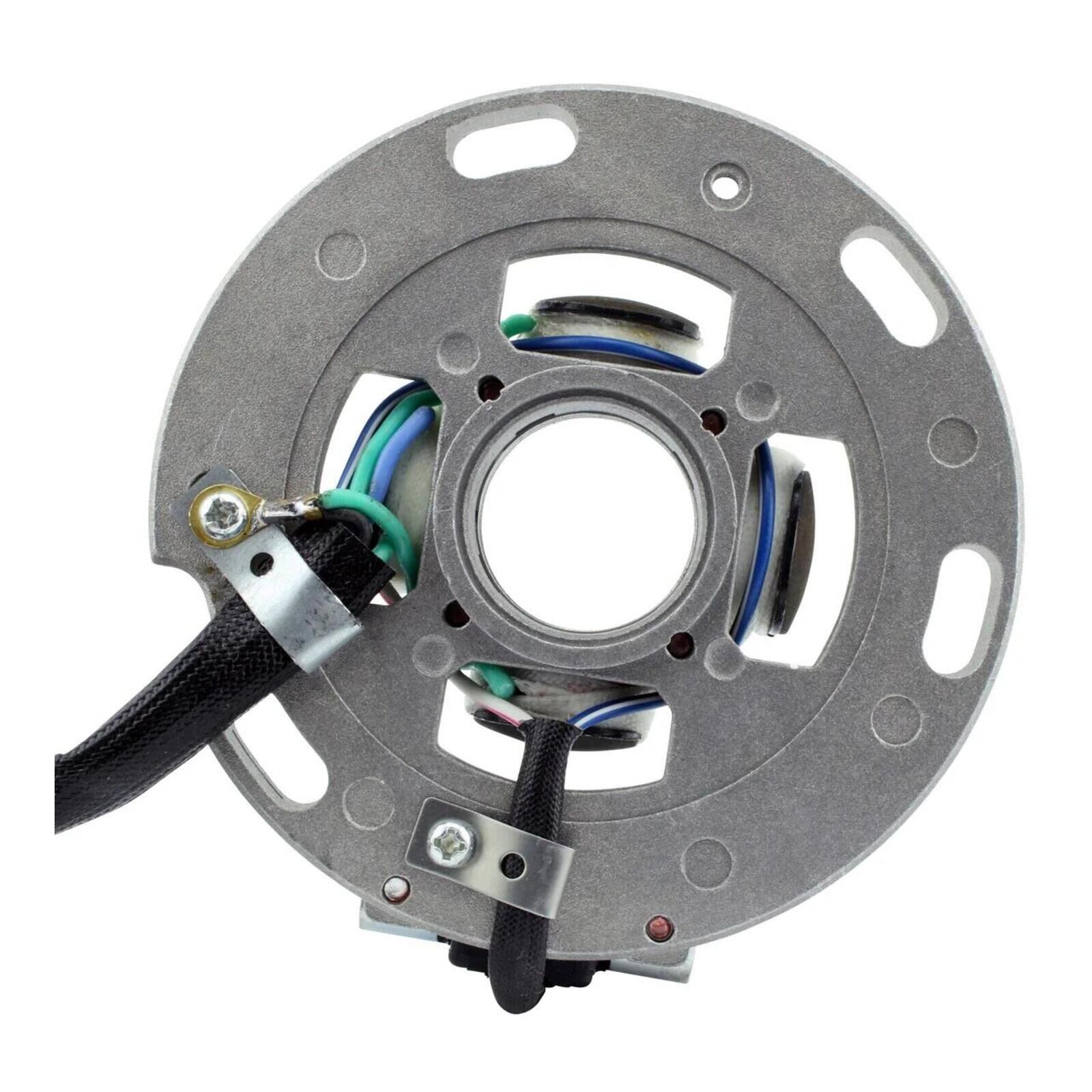

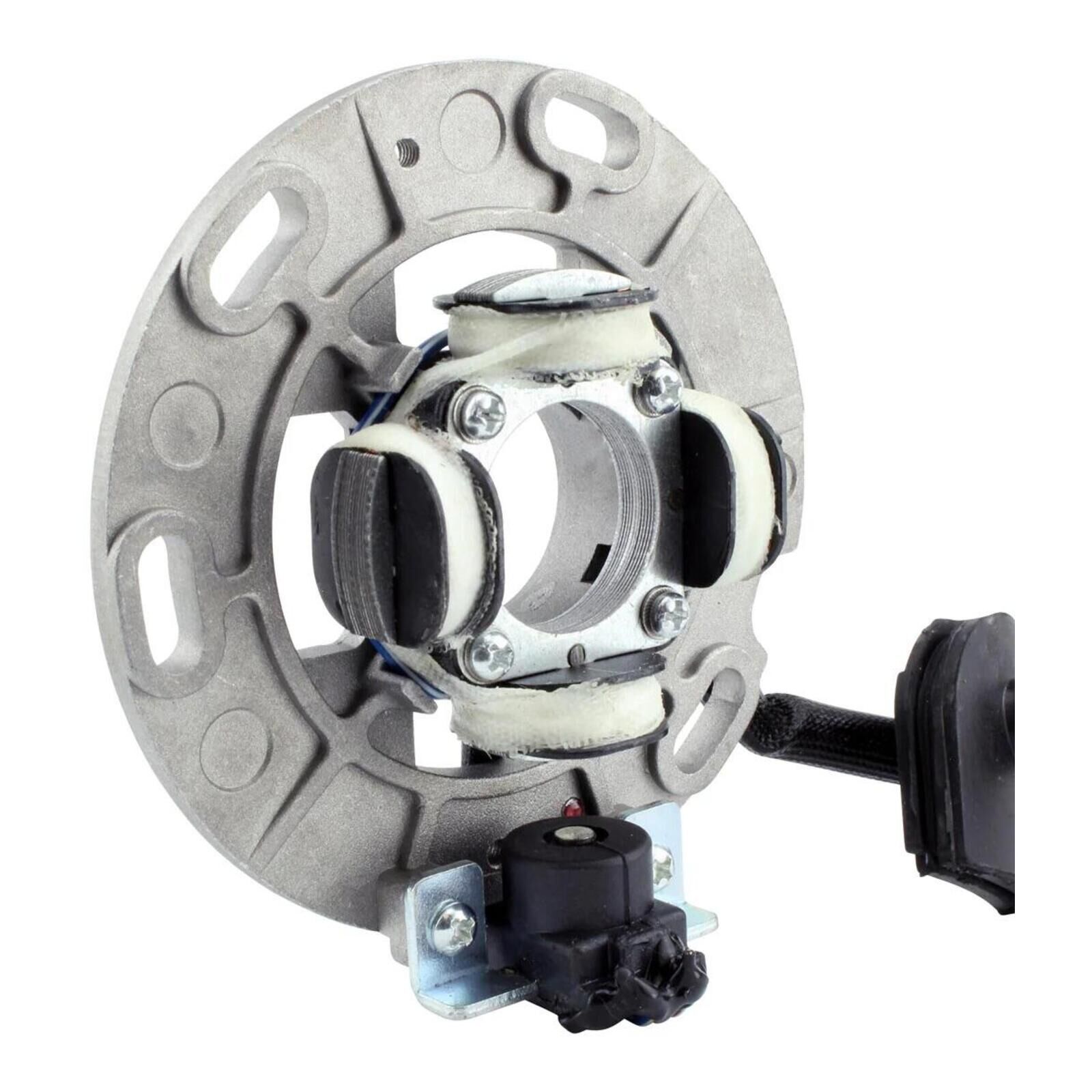

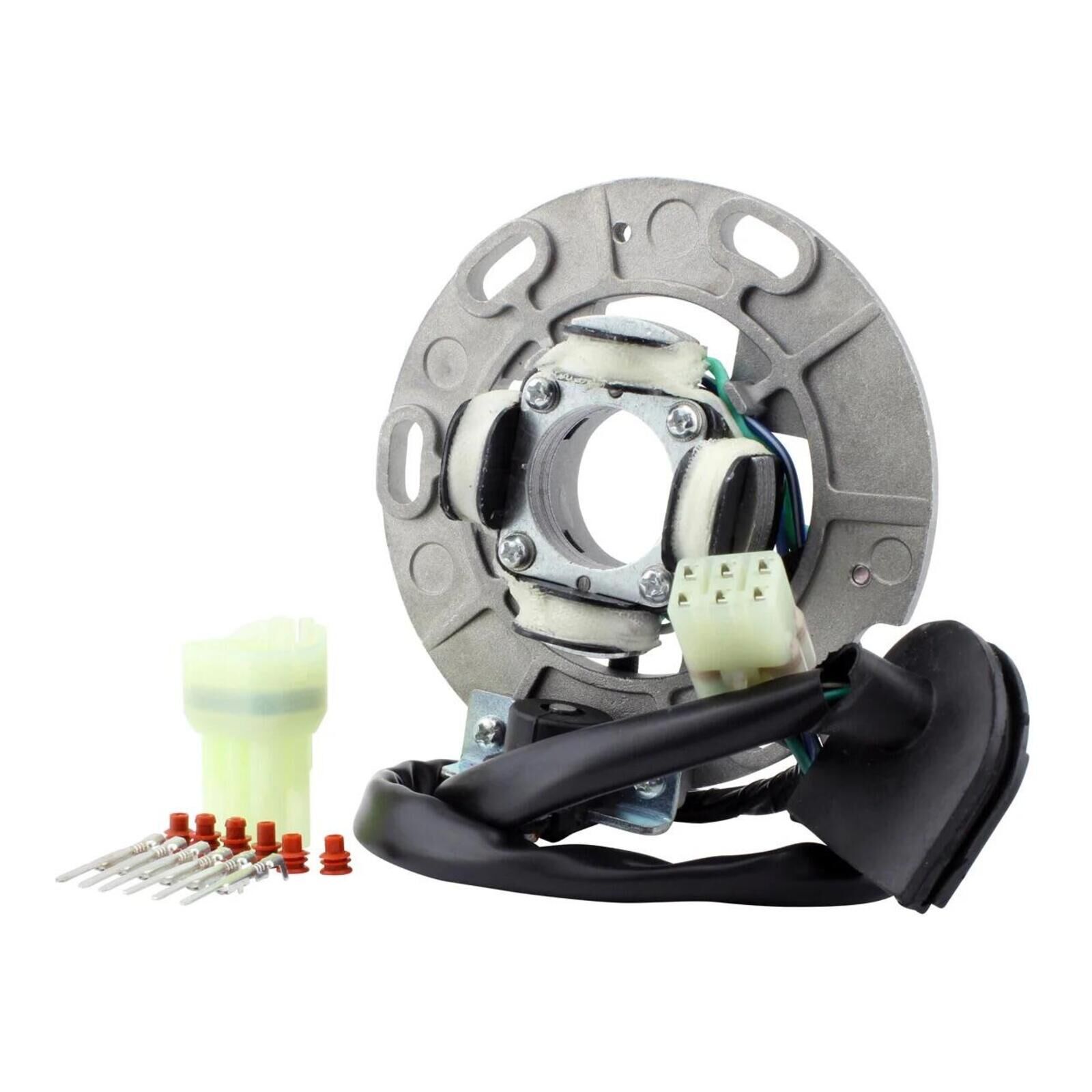

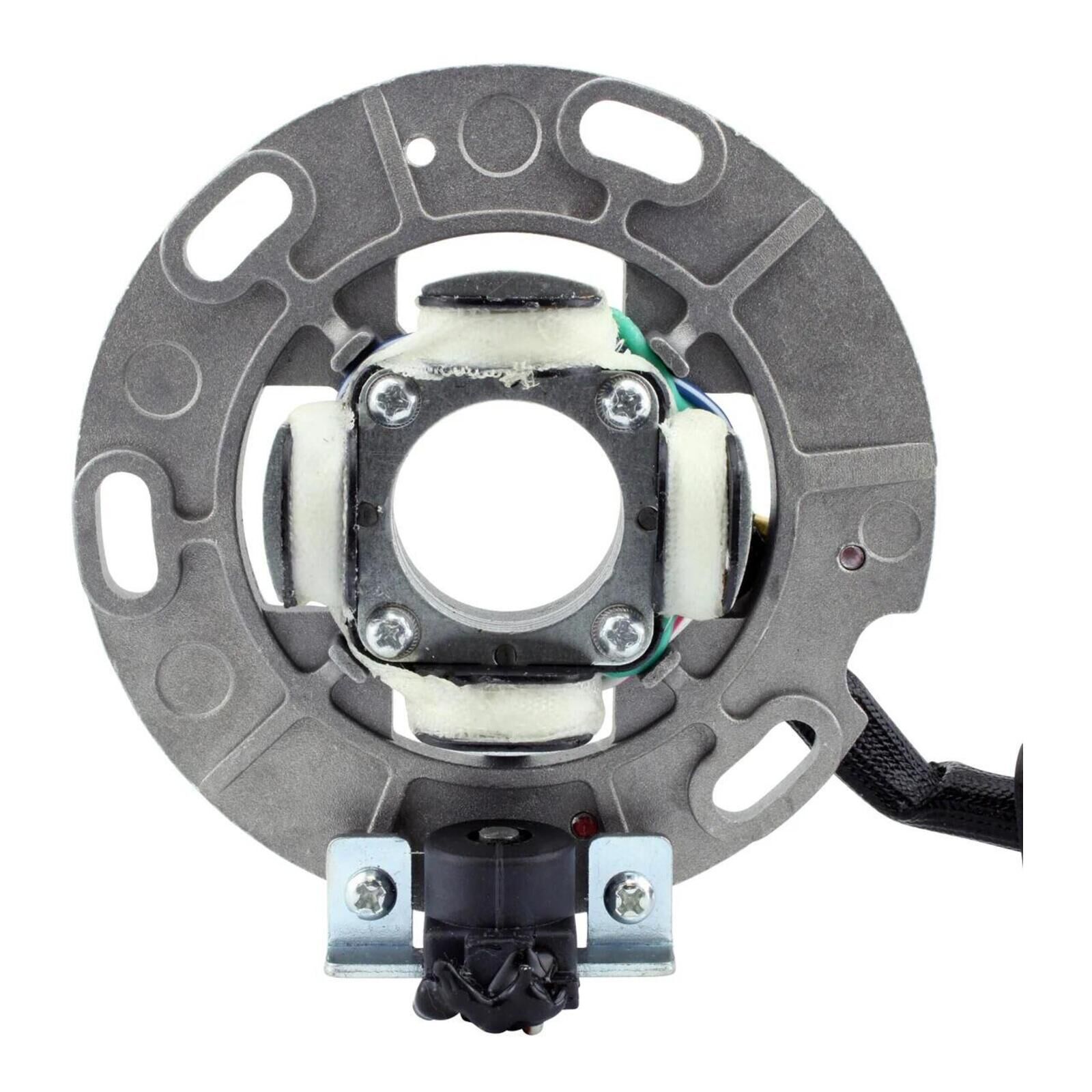

Brand new aftermarket Stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.
  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

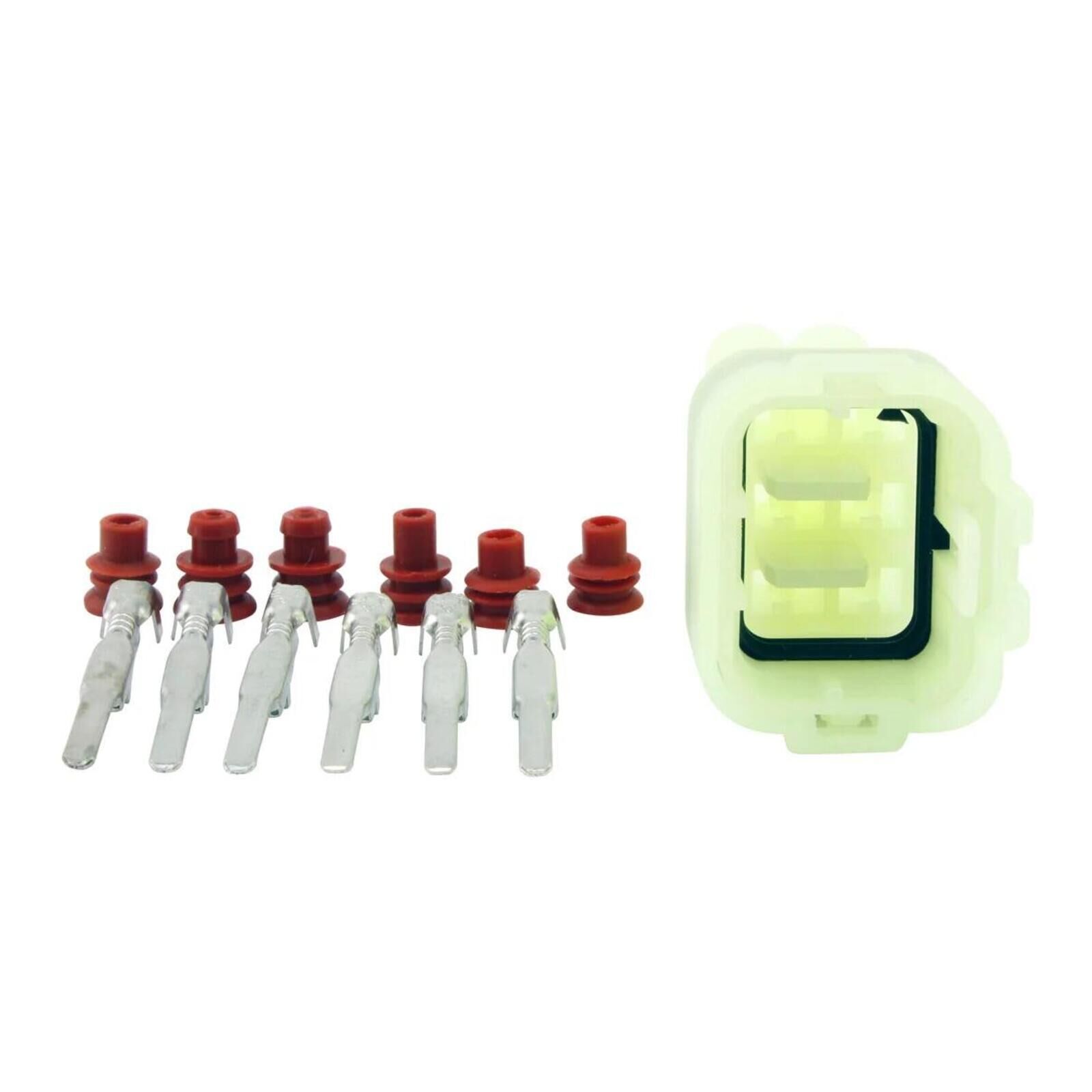

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Specifications:

Dimensions :

  • Interior diameter: 28mm
  • Exterior diameter: 59.30mm
  • Thickness: 33mm
  • Length of wires stator to grommet: 32mm
  • Length of wires grommet to plug: 320mm

Other specifications :

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6
  • Number of poles: 4
  • Pickup: White/Blue to White/Red = 285 ohms +-20%
  • Source #1: Green/White to Green = 54 ohms +-20%
  • Source #2: Black/Red to Black = 875 ohms +-20%

(WPS-RMS010102117)

SKU WPS-RMS010102117
Barcode # RMS010-102117
Brand RMSTATOR
