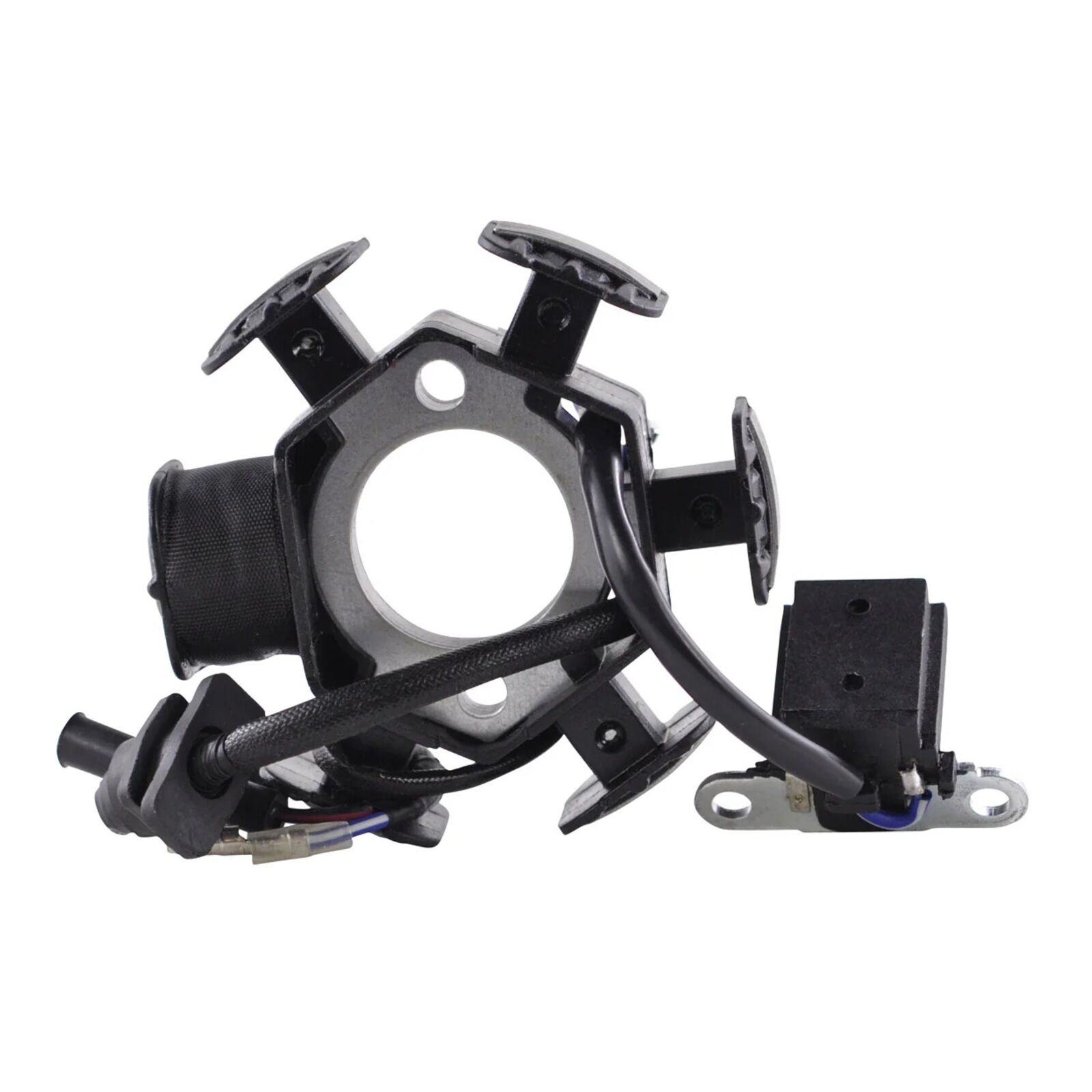

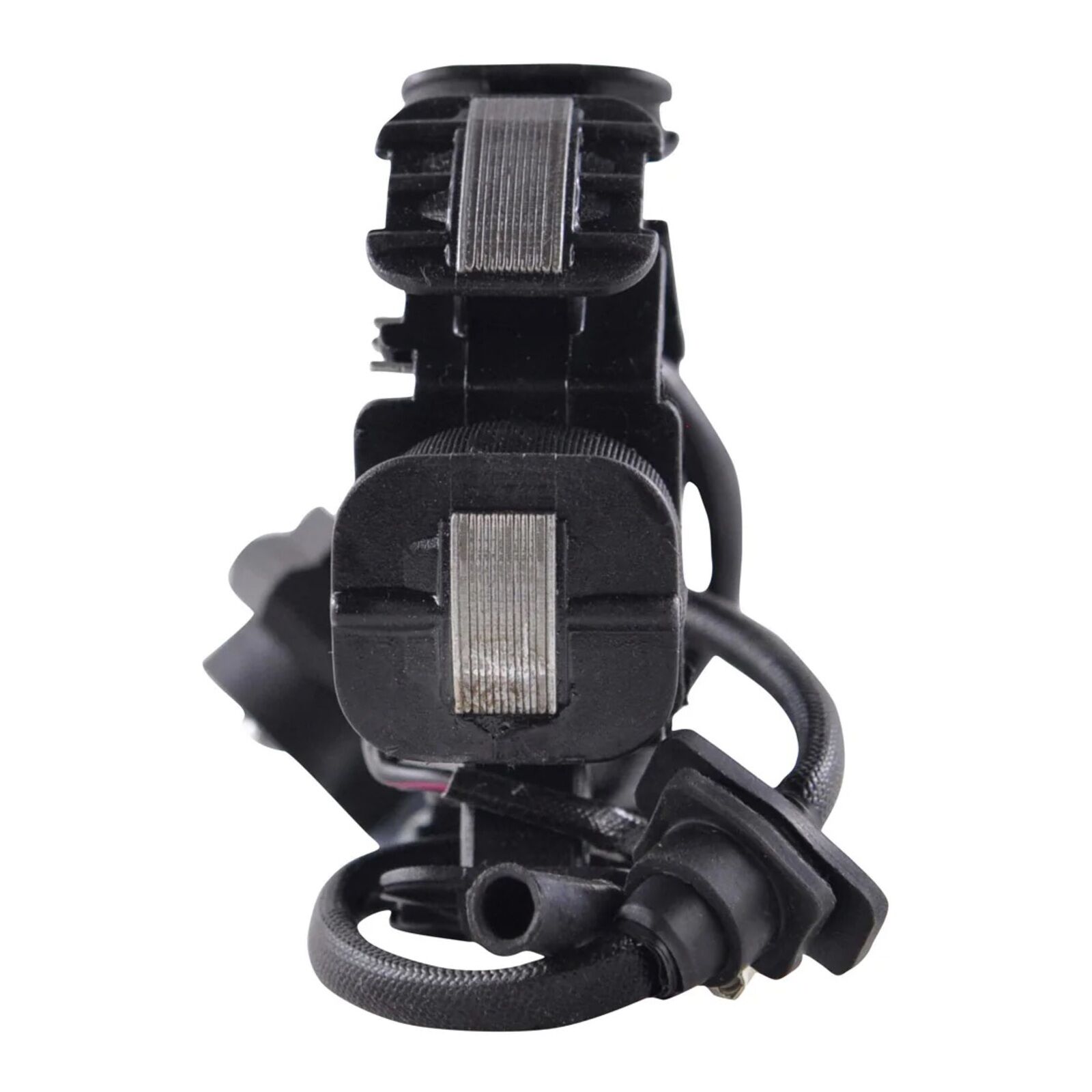

Brand new aftermarket Stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.

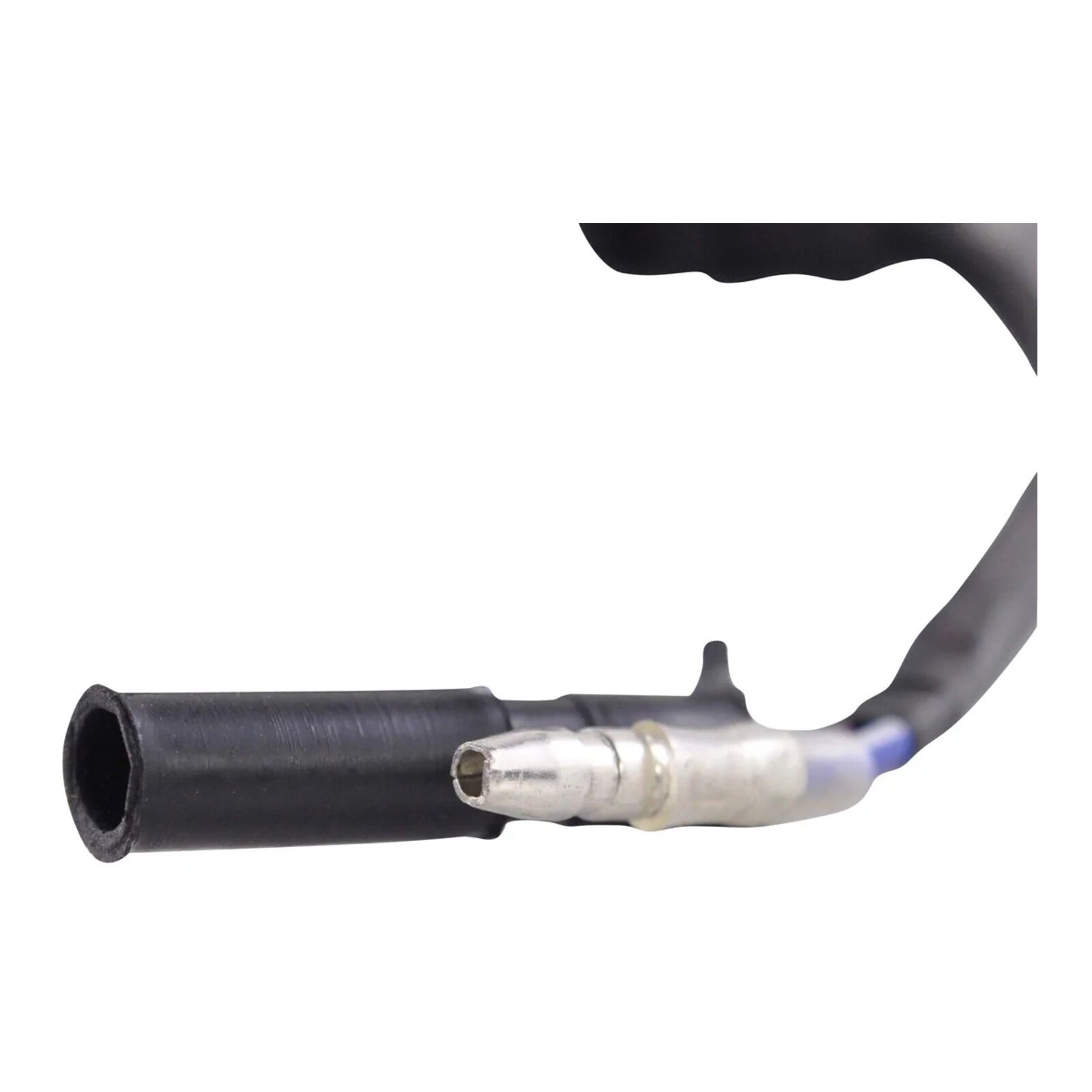

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Dimensions

  • Interior diameter: 29mm
  • Exterior diameter: 83mm
  • Thickness : 9 mm
  • Length of wires stator to grommet: 40mm
  • Length of wires grommet to plug: 130mm
  • Length of pickup coil's wire to grommet: 60mm

Other specifications

  • Number of wires: 2
  • Number of plugs: 2
  • Number of pins: 2

Wire to wire resistance

  • Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
  • Source: Black/Red to Ground = 715 ohms +-20%

(WPS-RMS010101530)

SKU WPS-RMS010101530
Barcode # RMS010-101530
Brand RMSTATOR
