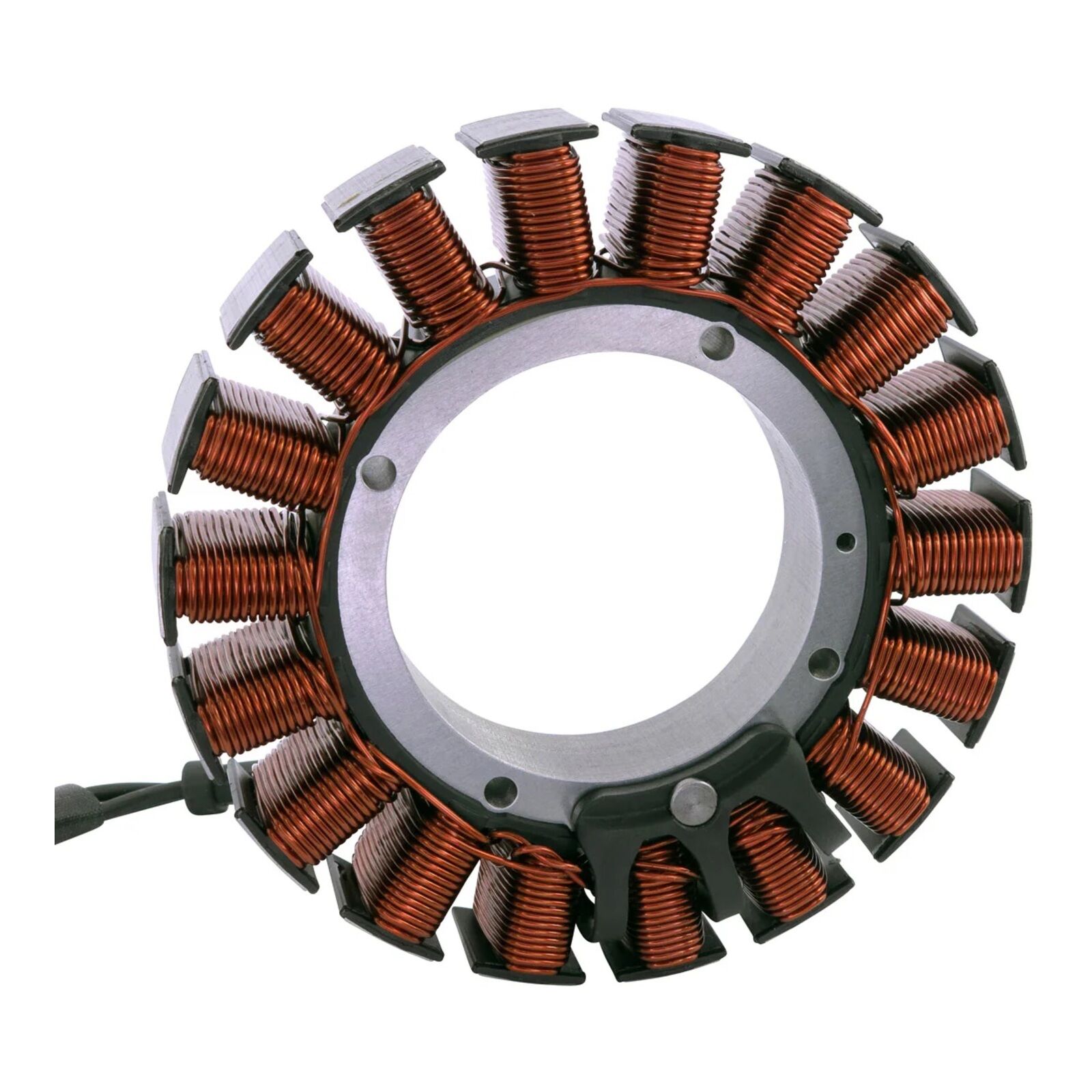

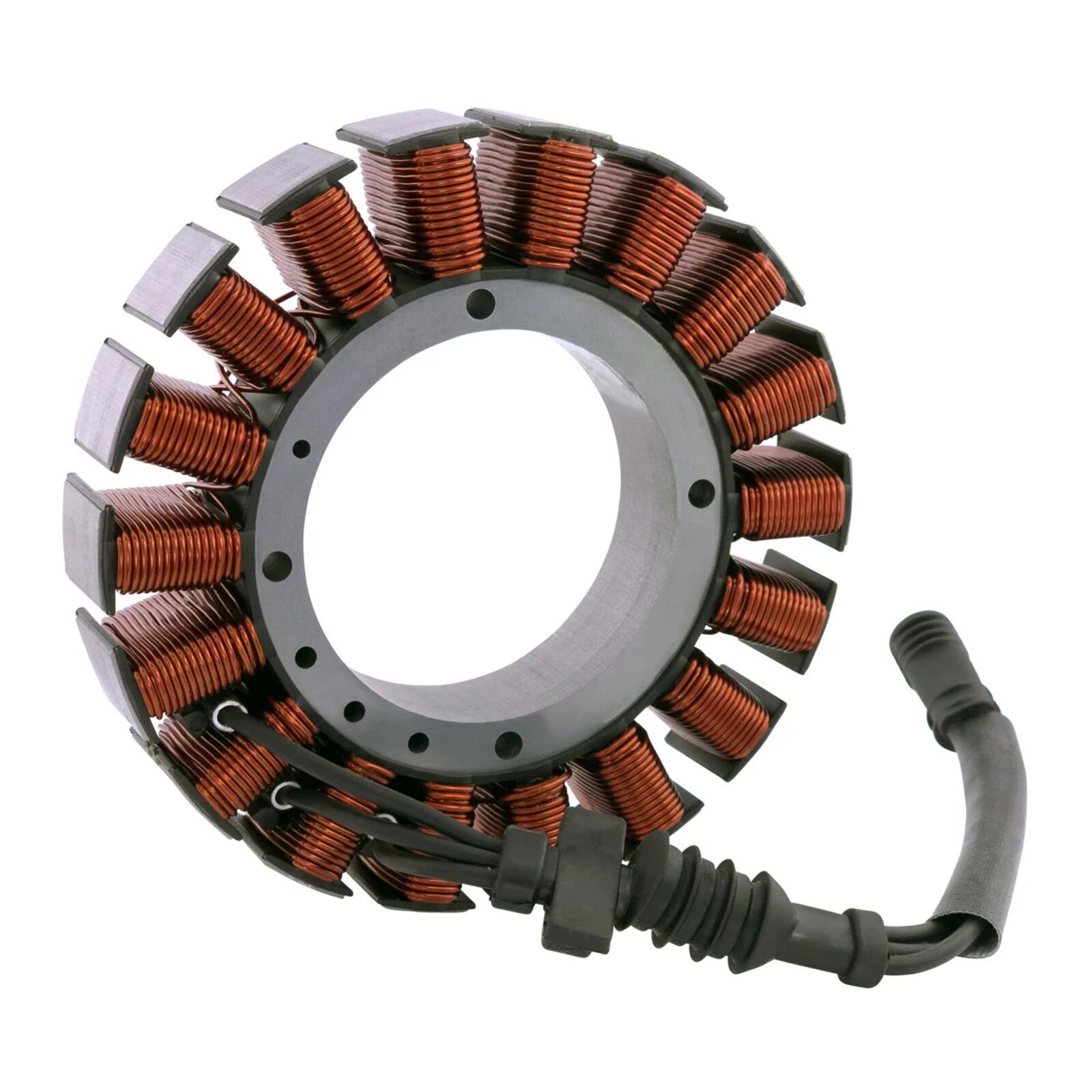

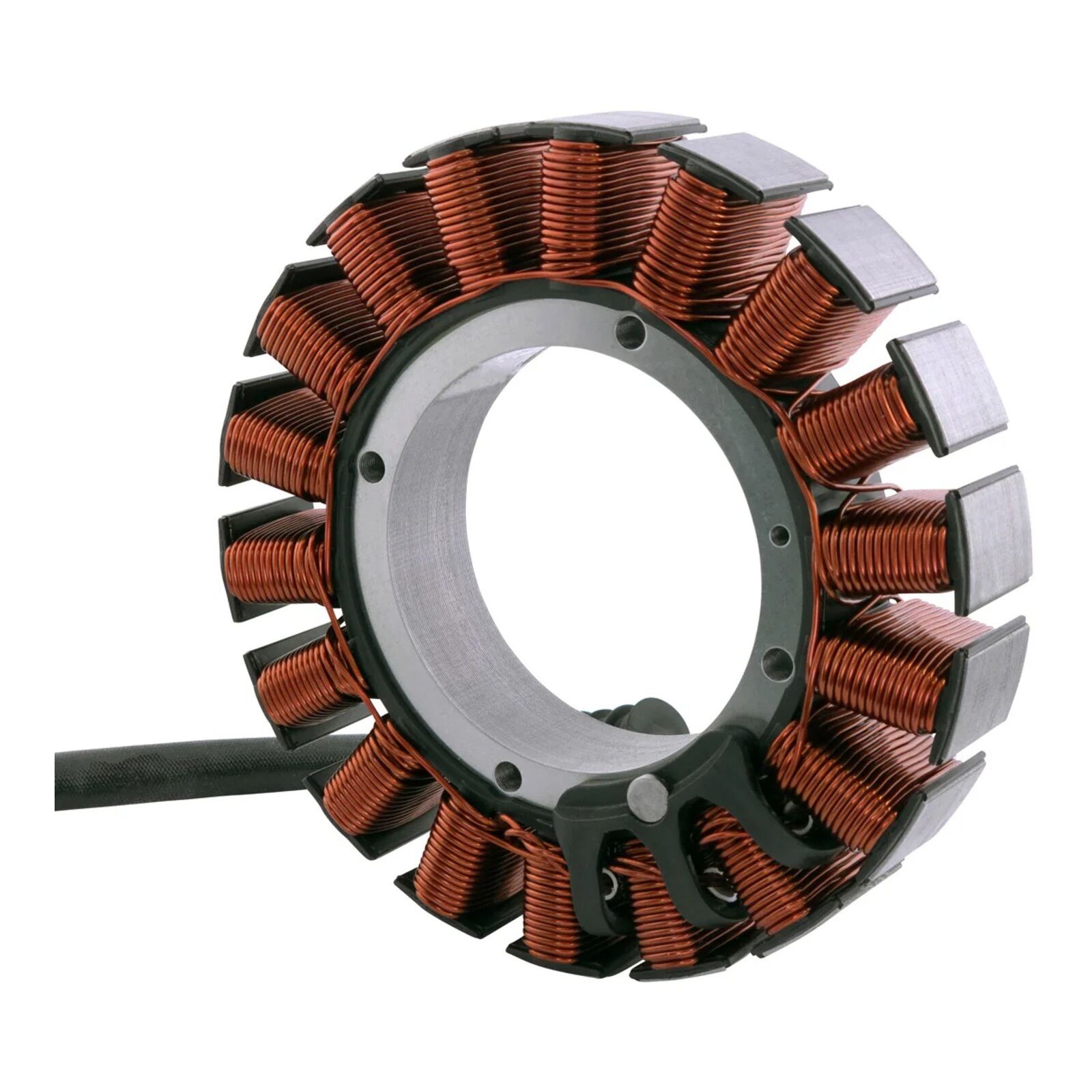

Brand new aftermarket stator.

Features:

  • Direct replacement for your original unit.
  • Plug-and-play direct fit easy installation.
  • Made with the highest grade lamination materials.
  • Premium copper winding resistant up to 200°C.

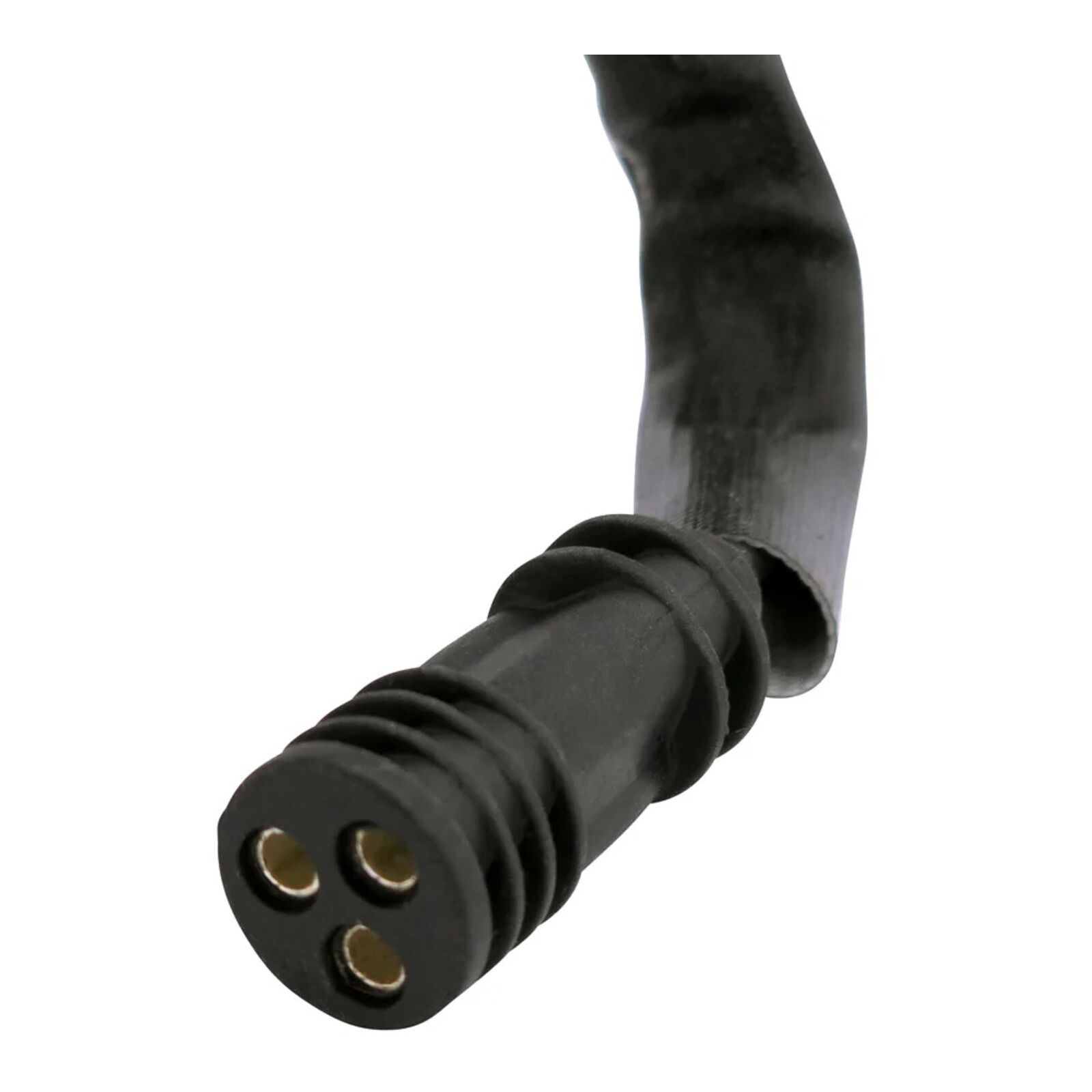

  • Connectors included.

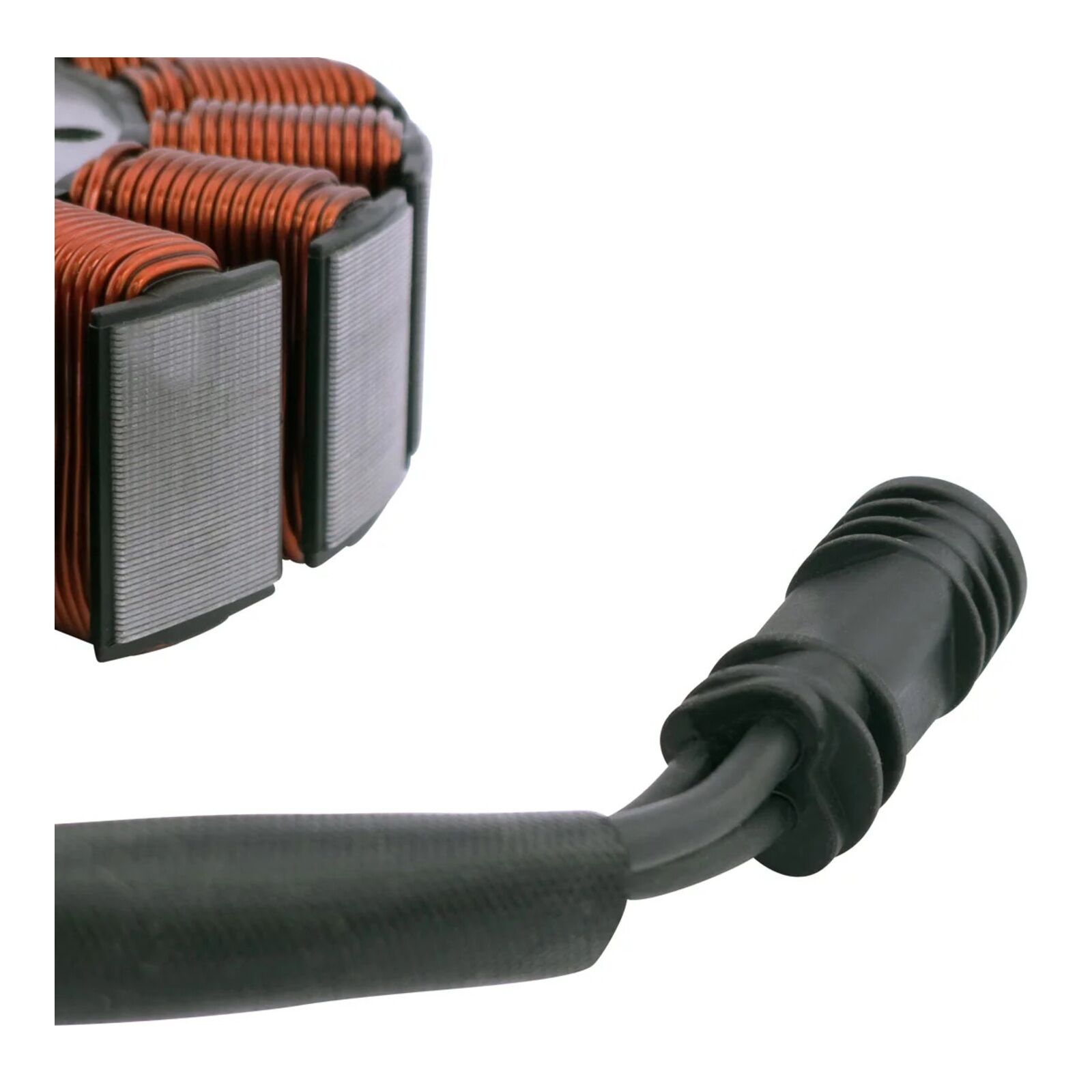

  • Rubber grommet included.
  • All products are fully tested before shipping.

Specifications:

Dimensions:

  • Interior diameter: 71 mm
  • Exterior diameter: 144 mm
  • Thickness: 24 mm
  • Length of wires (stator ? grommet): 40 mm
  • Length of wires (grommet ? plug): 130 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire-to-wire resistance:

  • Alternator: Black to Black = 0.6 O ±20%
  • Alternator: Black to Ground = O.L (Open Loop)

Brand new aftermarket stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding resistant to 200 degrees Celsius.
  • Connectors included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Dimensions

  • Interior diameter: 71 mm
  • Exterior diameter: 144 mm
  • Thickness: 24 mm
  • Length of wires stator to grommet: 40 mm
  • Length of wires grommet to plug: 130 mm

Other specifications

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire-to-wire resistance

  • Alternator: Black to Black = 0.6 ohms +/-20%
  • Alternator: Black to ground = O.L

(WPS-RMS010108654)

SKU WPS-RMS010108654
Barcode # RMS010108654
Brand RMSTATOR
