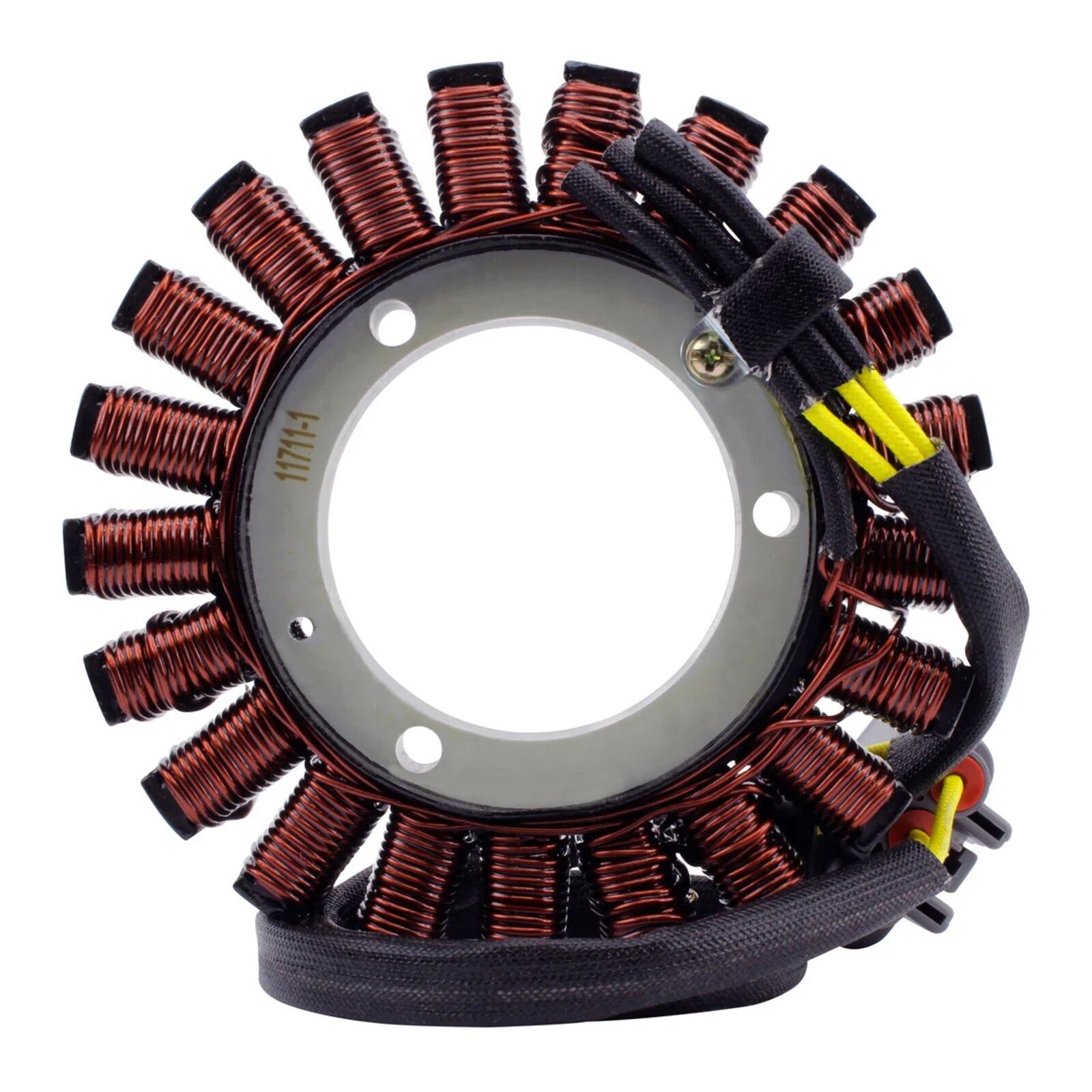

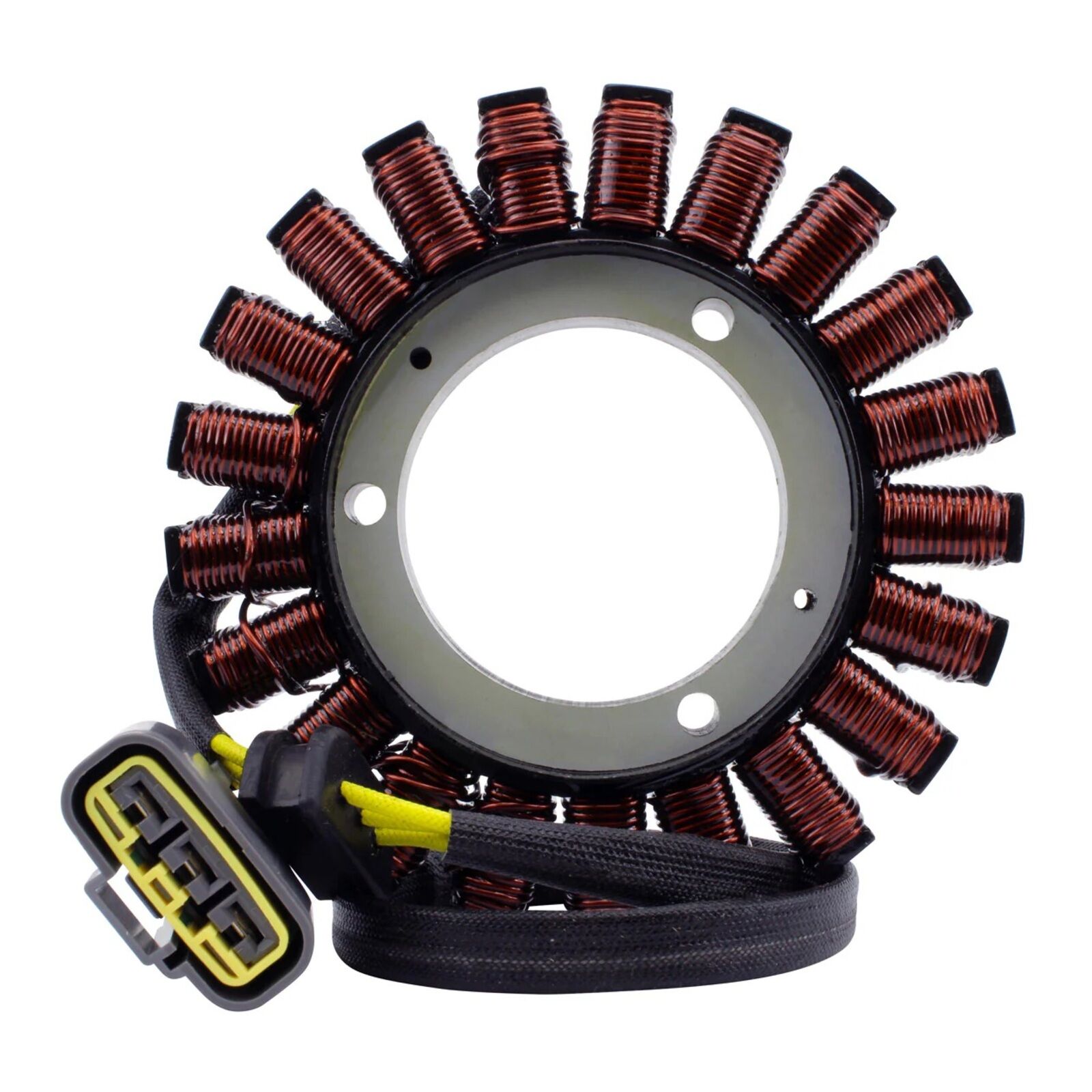

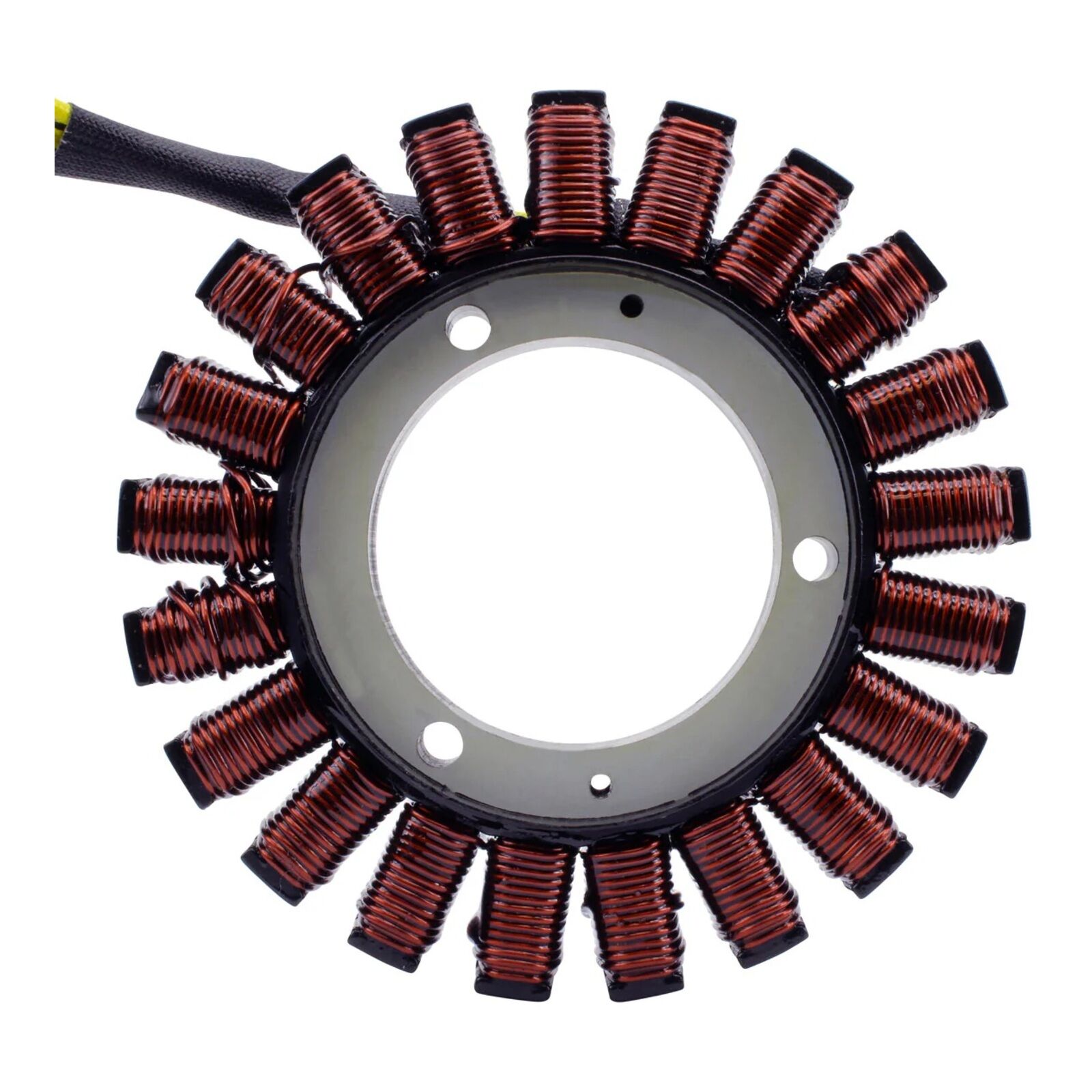

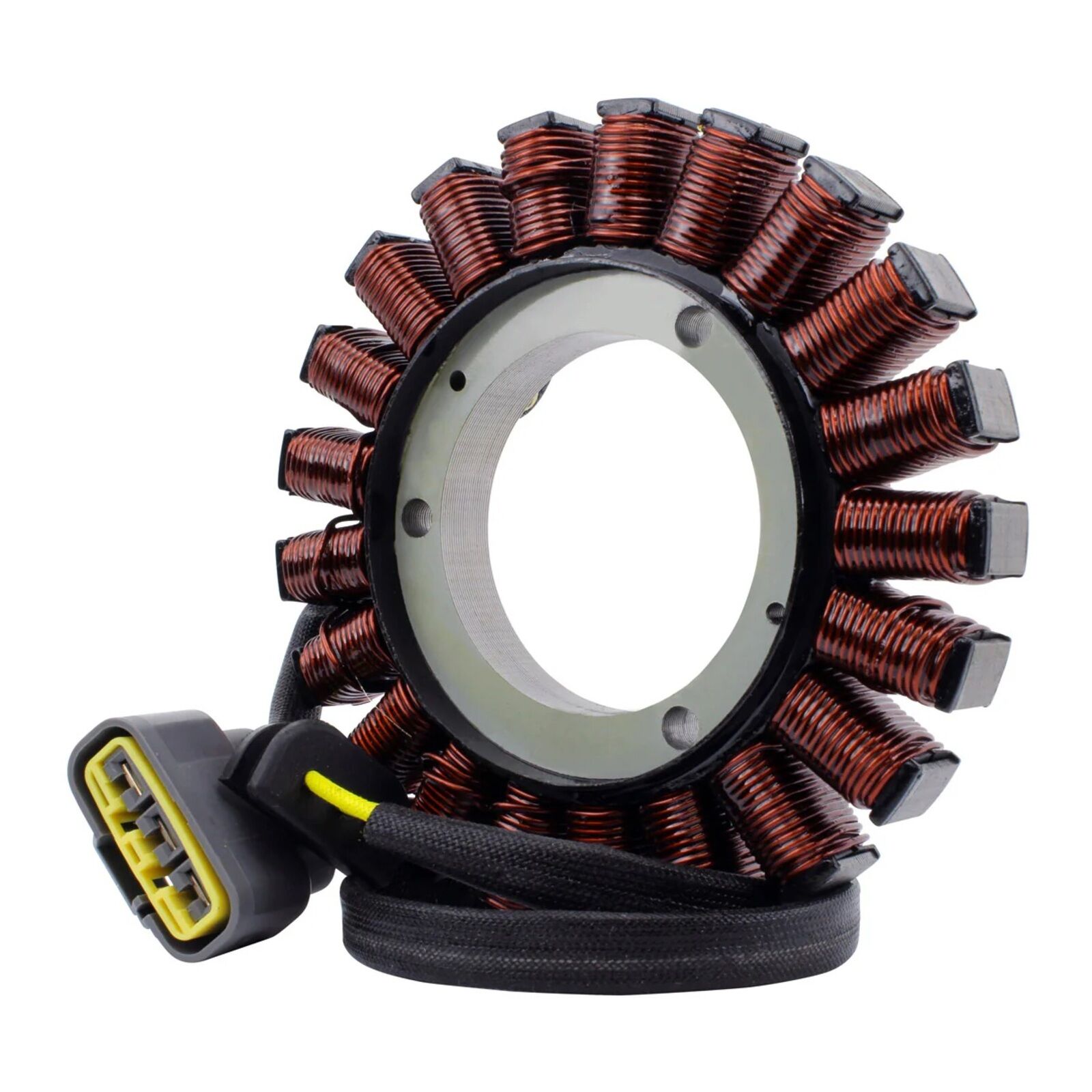

Brand new aftermarket Stator.

Features:

  • Direct replacement of your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding resistant to 200 degrees Celsius.
  • Connectors included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

  • Dimensions:
    • Interior diameter: 60 mm
    • Exterior diameter:133 mm
    • Thickness: 18 mm
    • Length of wires stator to grommet: 68 mm
    • Length of wires grommet to plug: 470 mm
  • Other specifications:
    • Number of wires: 3
    • Number of plugs: 1
    • Number of pins: 3
    • Number of poles: 21
  • Wire-to-wire resistance:
    • Alternator 3p: Between each Yellow = 0.4 ohms +-20%

(WPS-RMS010105024)

SKU WPS-RMS010105024
Barcode # RMS010-105024
Brand RMSTATOR
