This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part. It runs cooler than all OEM diode-style regulators. In addition this rectifier has overheat protection; rather than burn up it will simply turn off for a while and cool off.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • No assembly required.
  • Higher grade of electric components.
  • Improved heat sink and charging capabilities.
  • The quality exceeds the OEM equipment.
  • All shipped products are tested.

Technical Data:

  • Dimensions:
    • Width: 90 mm
    • Length: 90 mm
    • Height: 30 mm
    • Wires length: 220 and 210 mm
    • Fixation holes centre to centre: 75 mm
  • Other specifications:

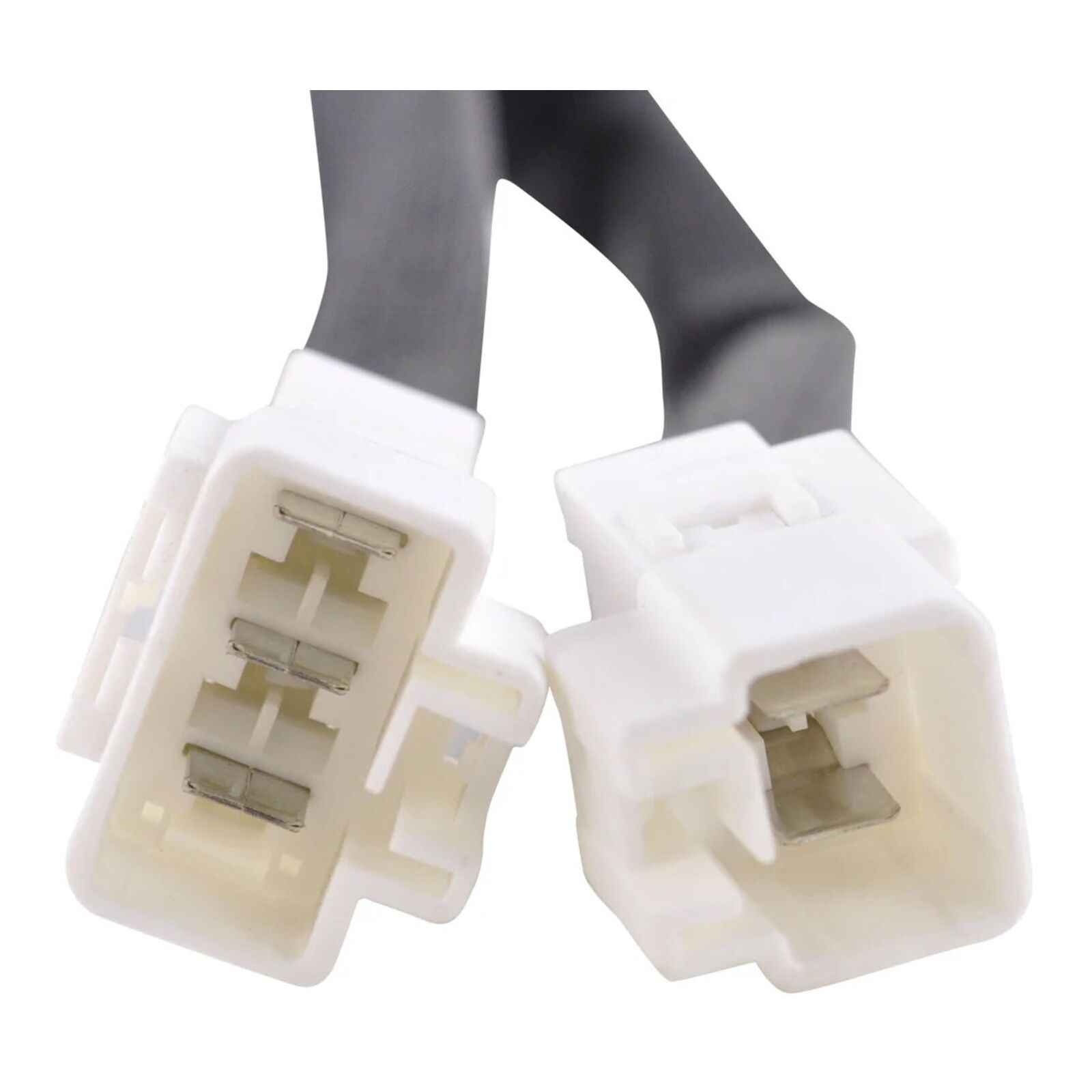

    • Number of plugs: 2
    • Number of pins: 5
    • Number of wires: 5
    • Minimum Charging Voltage: 14.5V +- 0.5V
    • Maximum Charging Current: 50A500W
    • Open Circuit Voltage: 15V
    • Operation Temperature: -20° to 85°

(WPS-RMS020102340)

SKU WPS-RMS020102340
Barcode # RMS020-102340
Brand RMSTATOR
