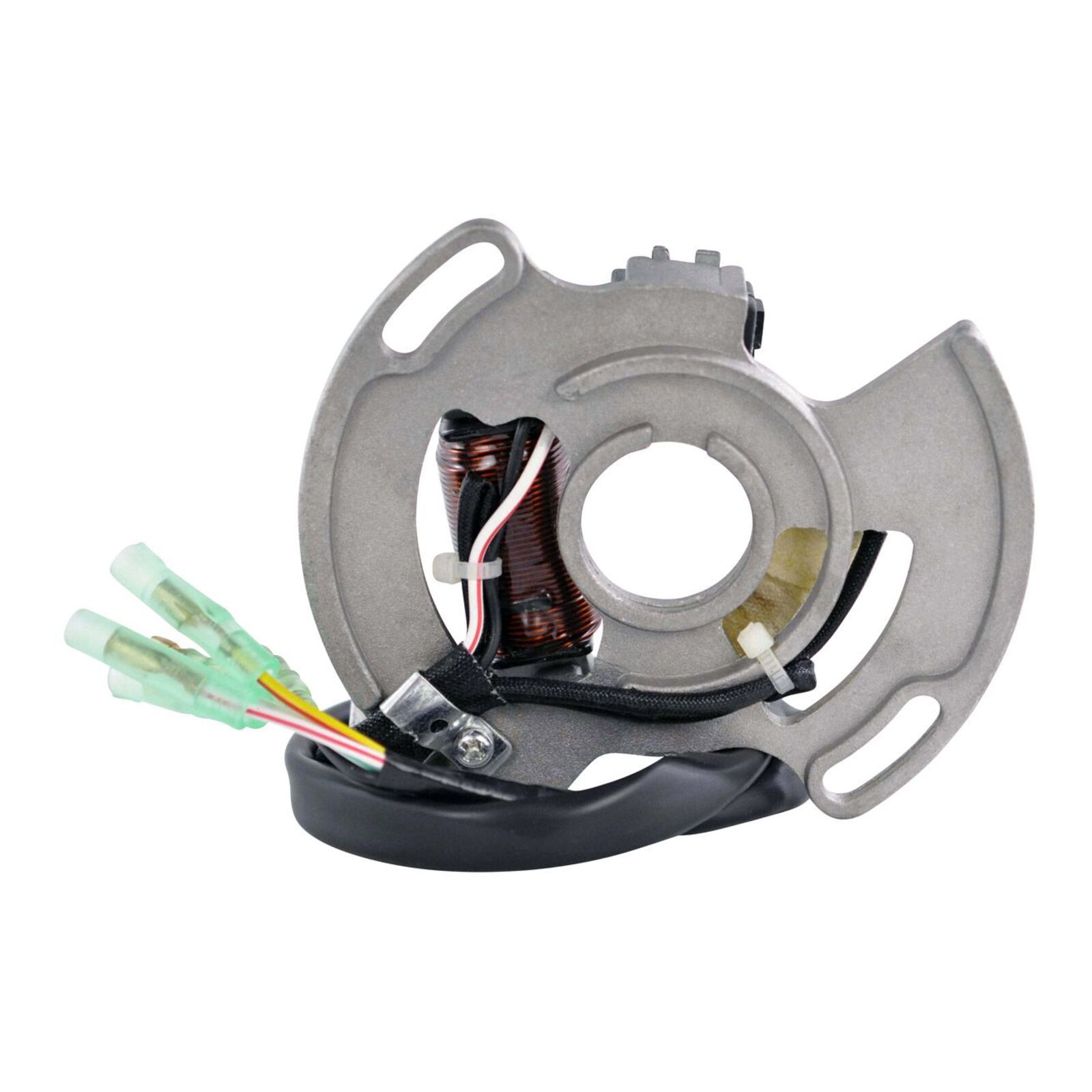

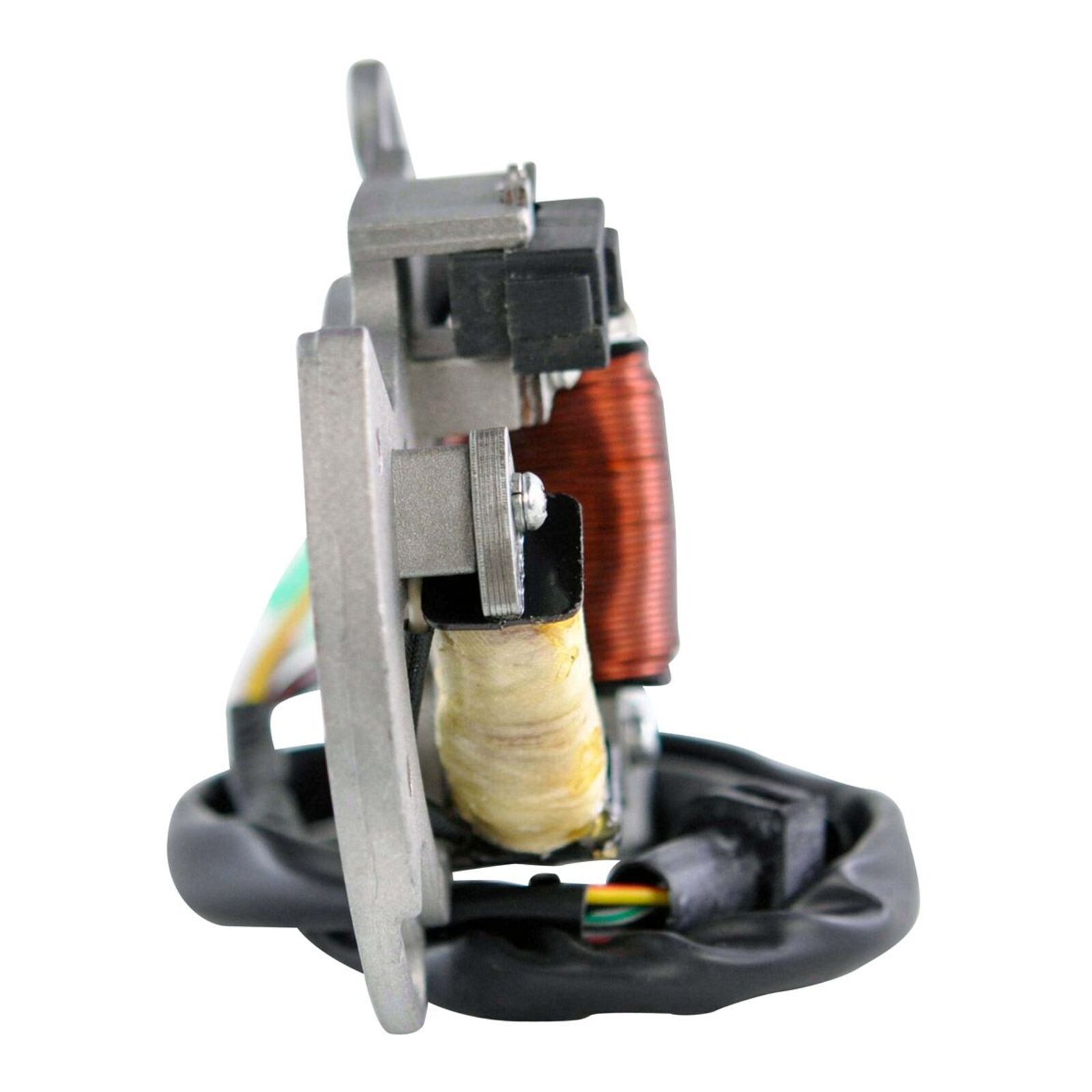

Direct replacement for your original unit.

  • Plug-and-play direct fit easy installation
  • Made with the highest grade lamination materials
  • Highest grade copper windings resistant to 200 degrees Celsius
  • 75 watts output for brighter light

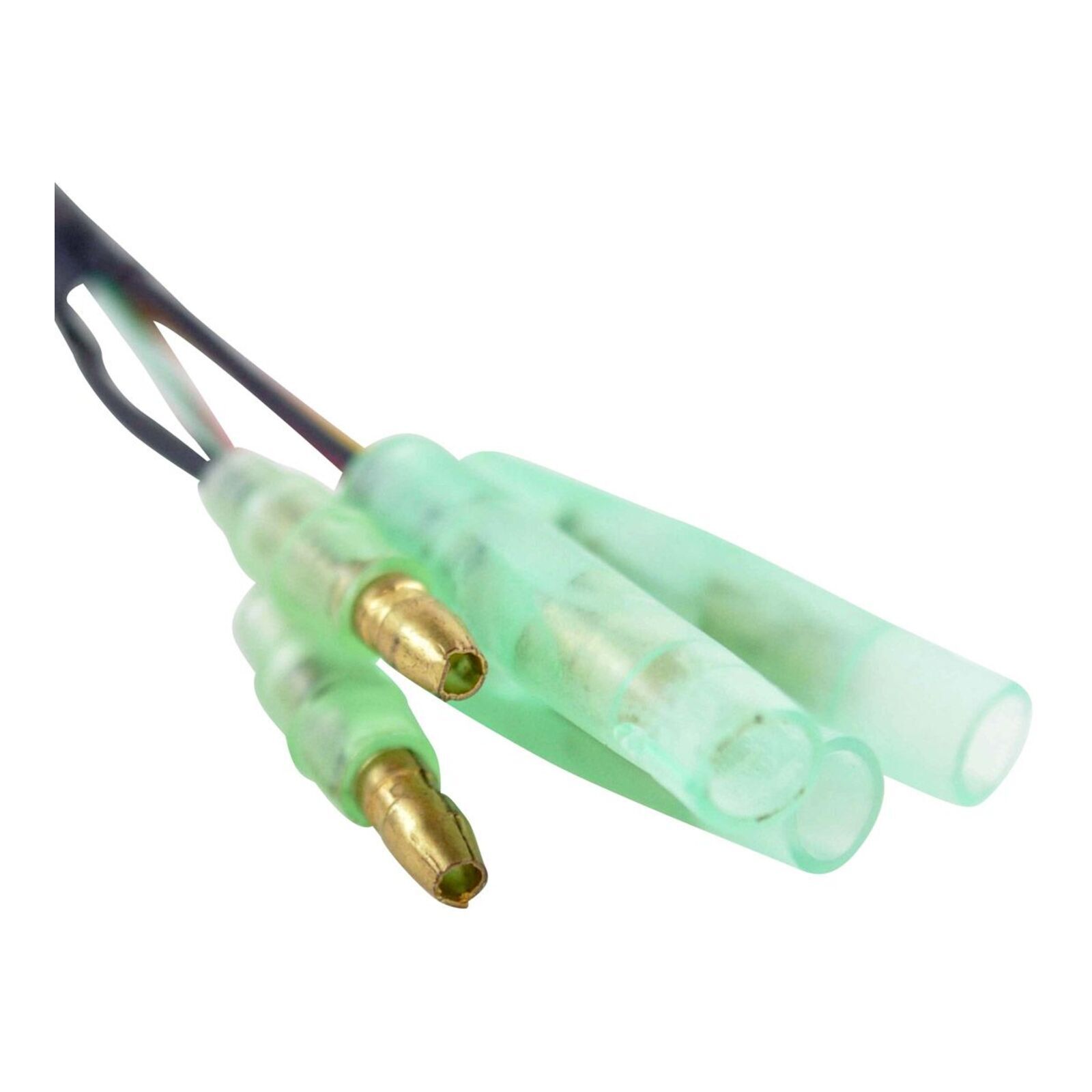

  • Connector included
  • Rubber grommet included
  • Adjustable timing plate to advance and retard up to 10 degrees included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 120 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 380 mm
  • Length of pickup coil's wire to grommet: 100 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 5
  • Number of pins: 5

Wire to Wire Resistance:

  • Alternator: Yellow/Red to Black = 0.4 ohms +/-20%
  • Pickup: White/Red to Black = 20 ohms +/-20%
  • Source: Black/Red to Green/White = 280 ohms +/-20%

(WPS-RMS01091)

SKU WPS-RMS01091
Brand RMSTATOR
