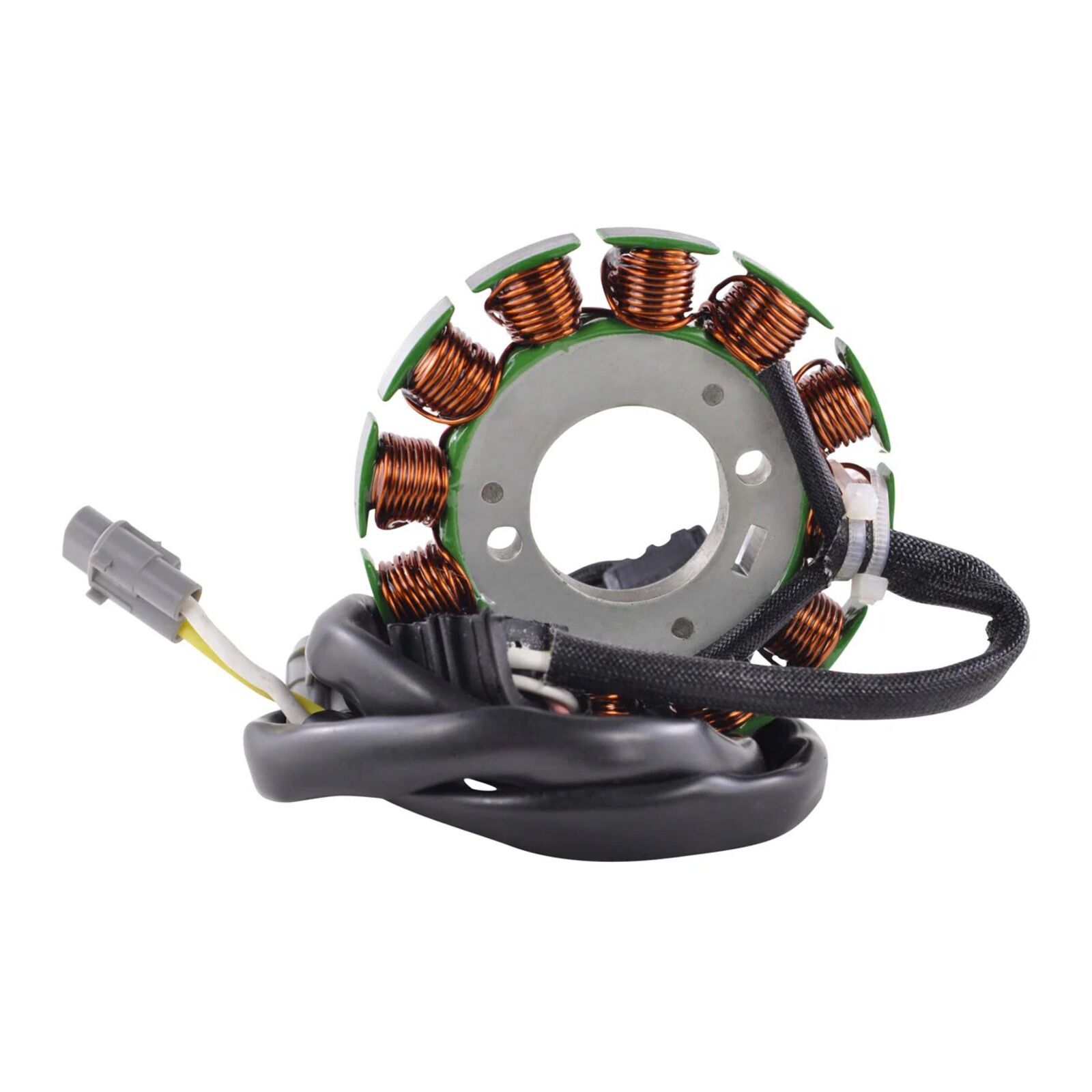

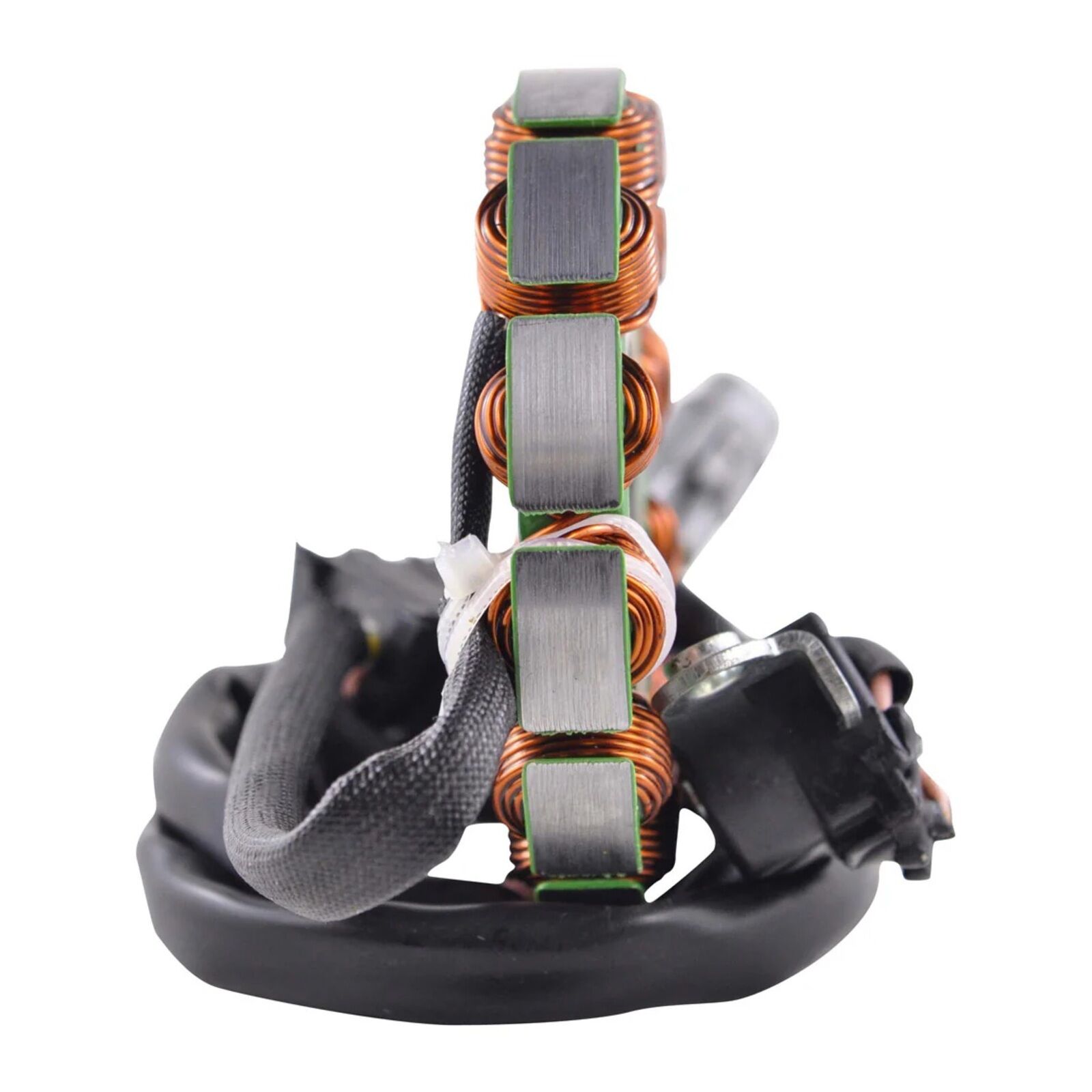

Brand new aftermarket stator.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play direct fit easy installation.
  • Highest grade lamination materials.
  • Highest grade copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.

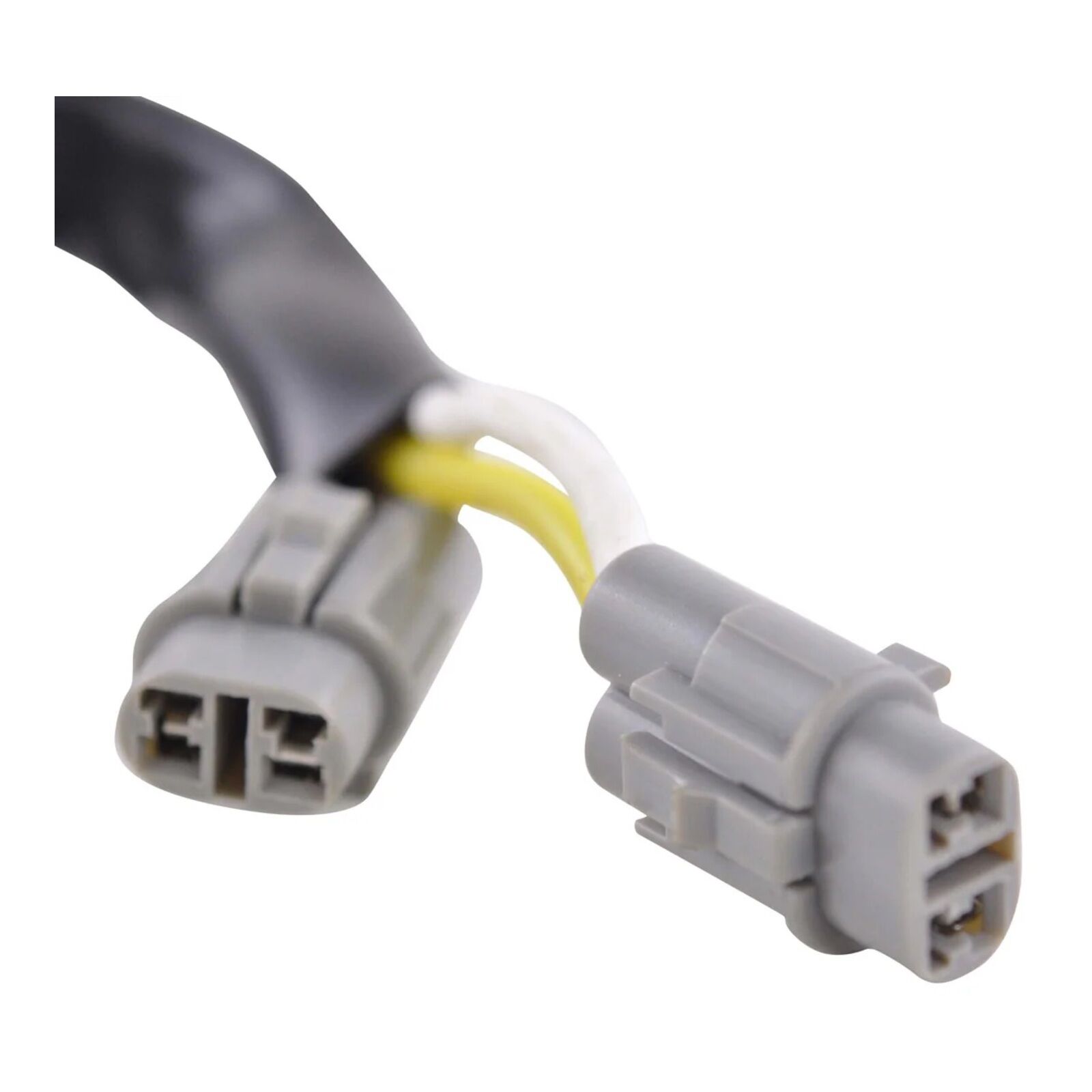

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

  • Interior diameter: 30 mm
  • Exterior diameter: 84 mm
  • Thickness: 9 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 545 mm
  • Length of pickup coil's wire to grommet: 90 mm

Other specifications

  • Number of wires: 4
  • Number of plugs: 2

Wire-to-wire resistance

  • Alternator : Yellow To White = 0.4 ohms +/-20%
  • Pickup : Pink To White = 280 ohms +/-20%

(WPS-RMS010100184)

SKU WPS-RMS010100184
Barcode # RMS010-100184
Brand RMSTATOR
