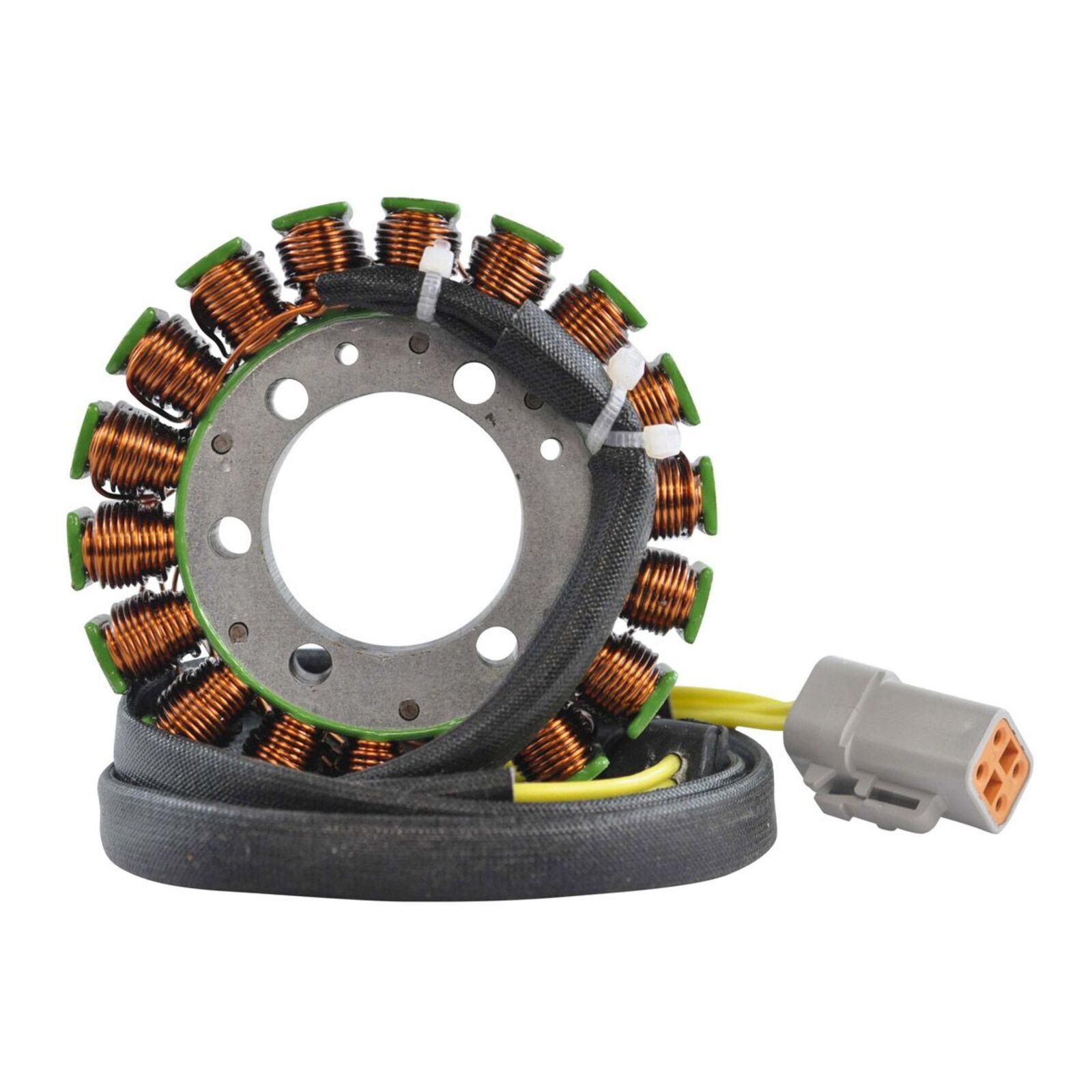

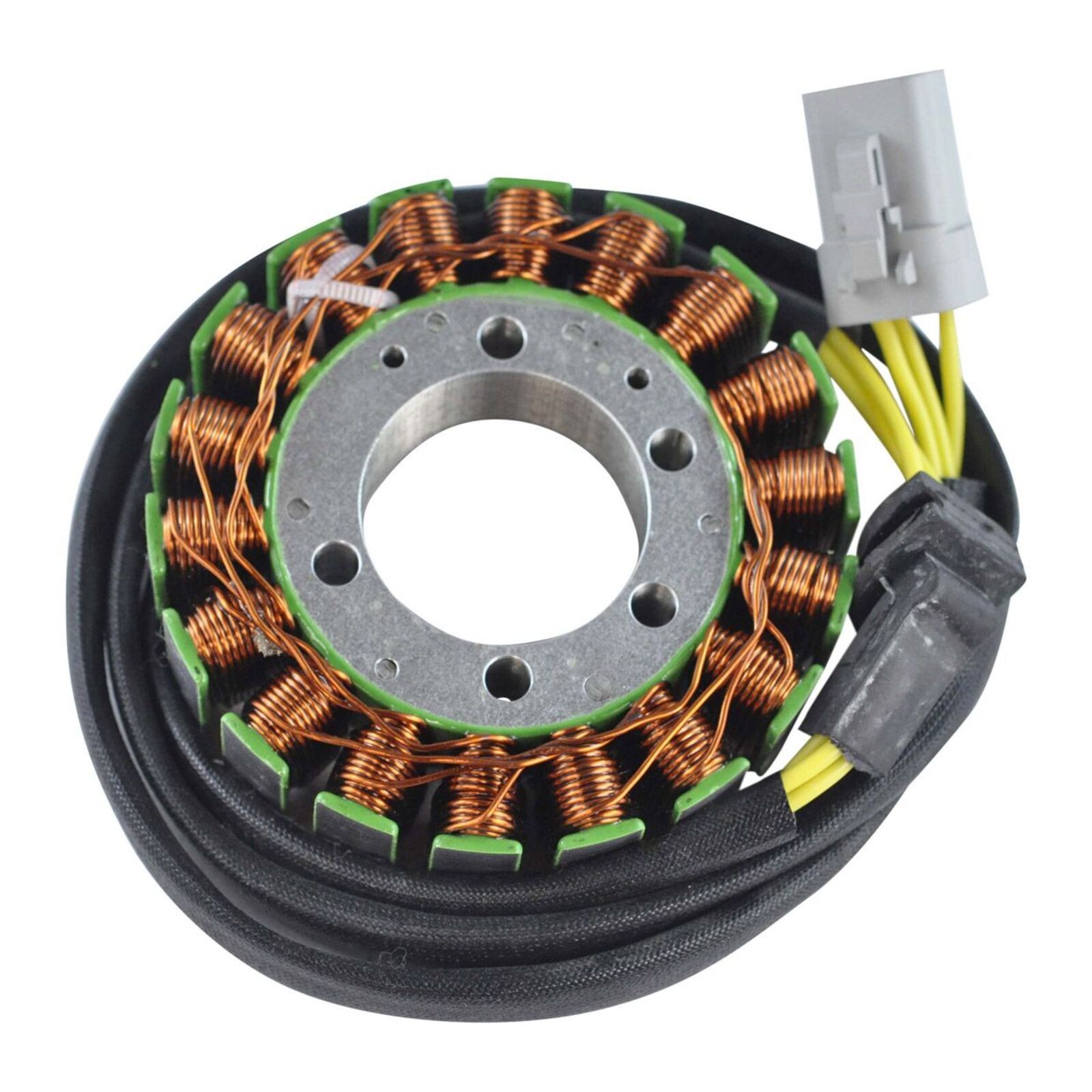

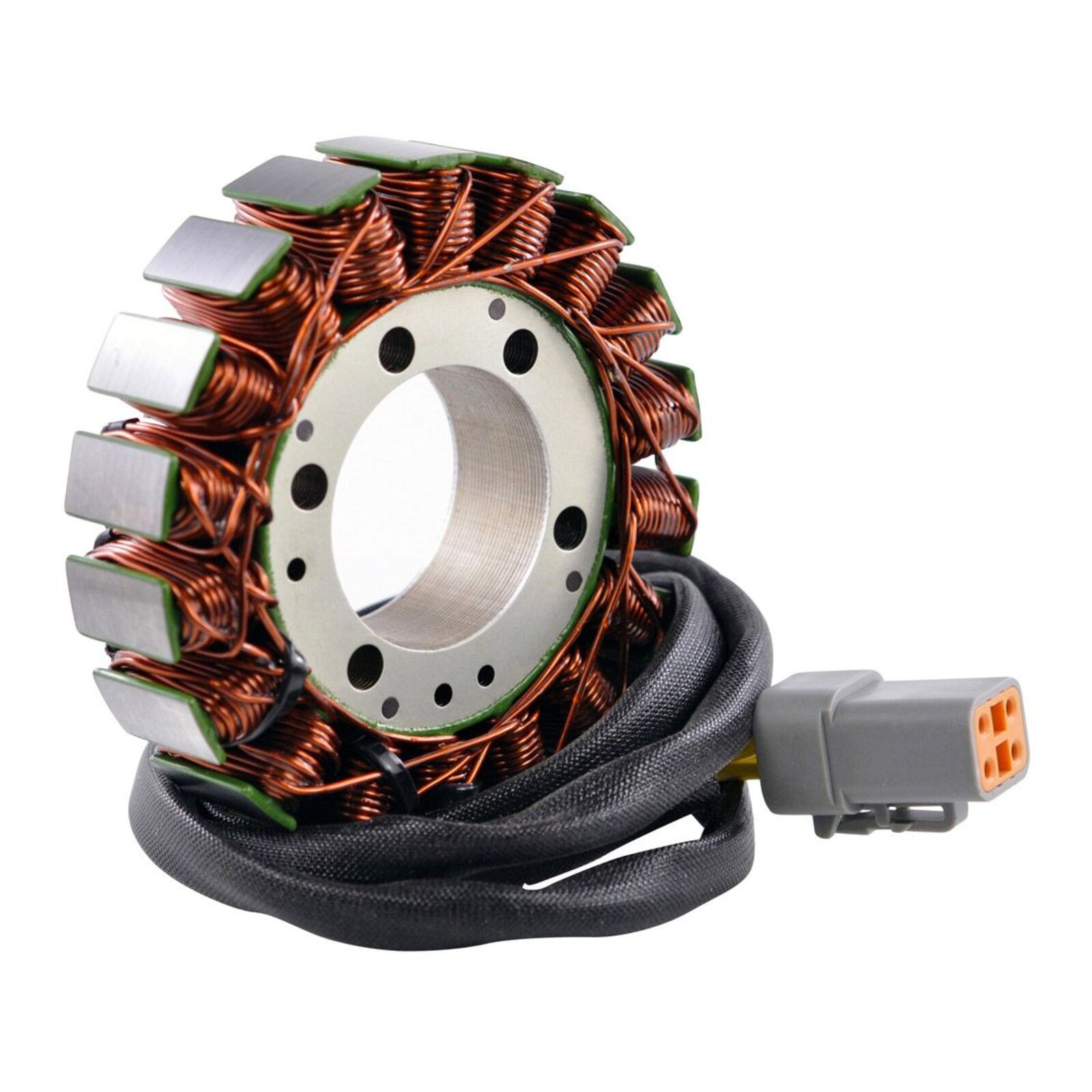

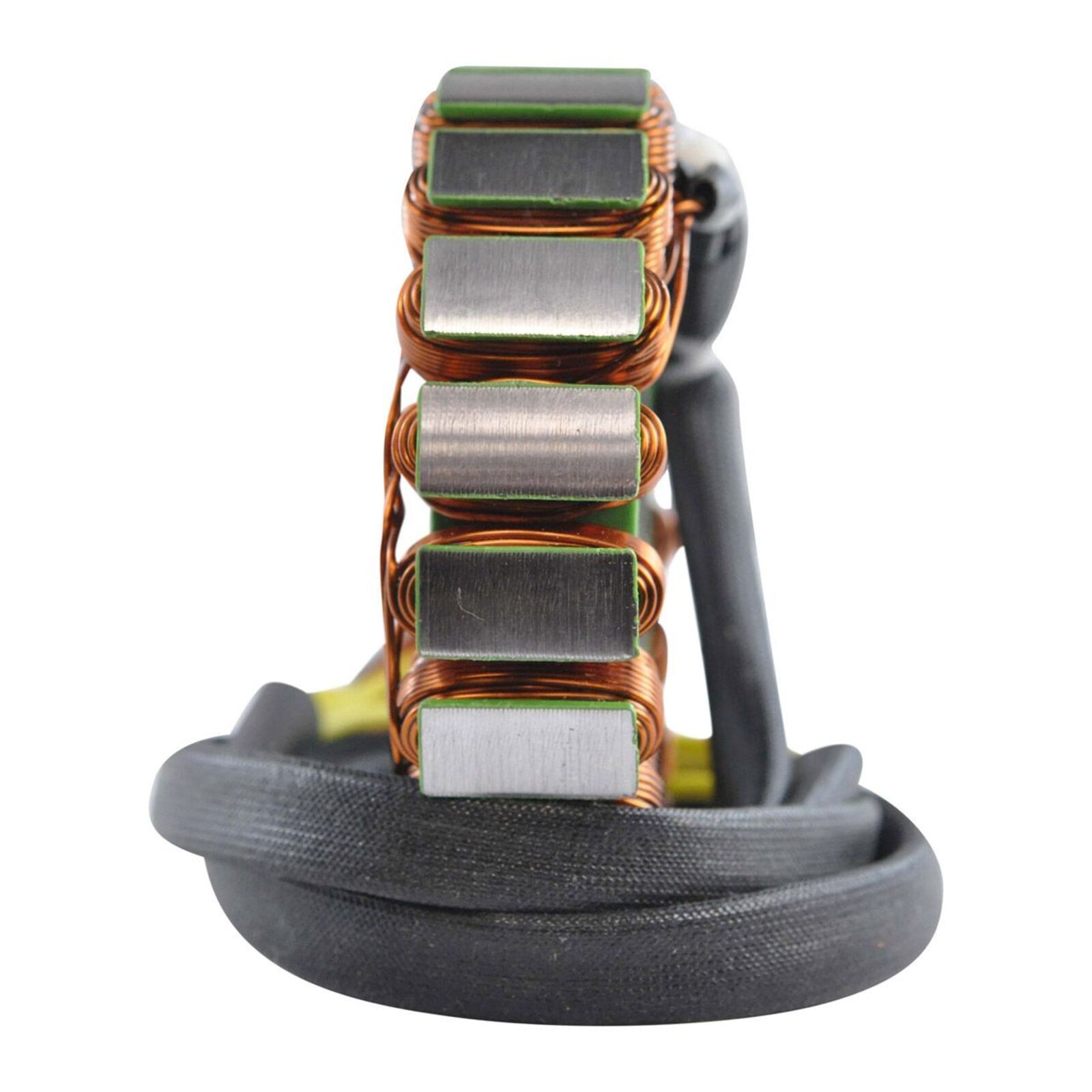

Plug-and-play aftermarket replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 41mm
  • Exterior diameter: 104mm
  • Thickness: 30mm
  • Length of wires — stator to grommet: 140mm
  • Length of wires — grommet to plug: 850mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius

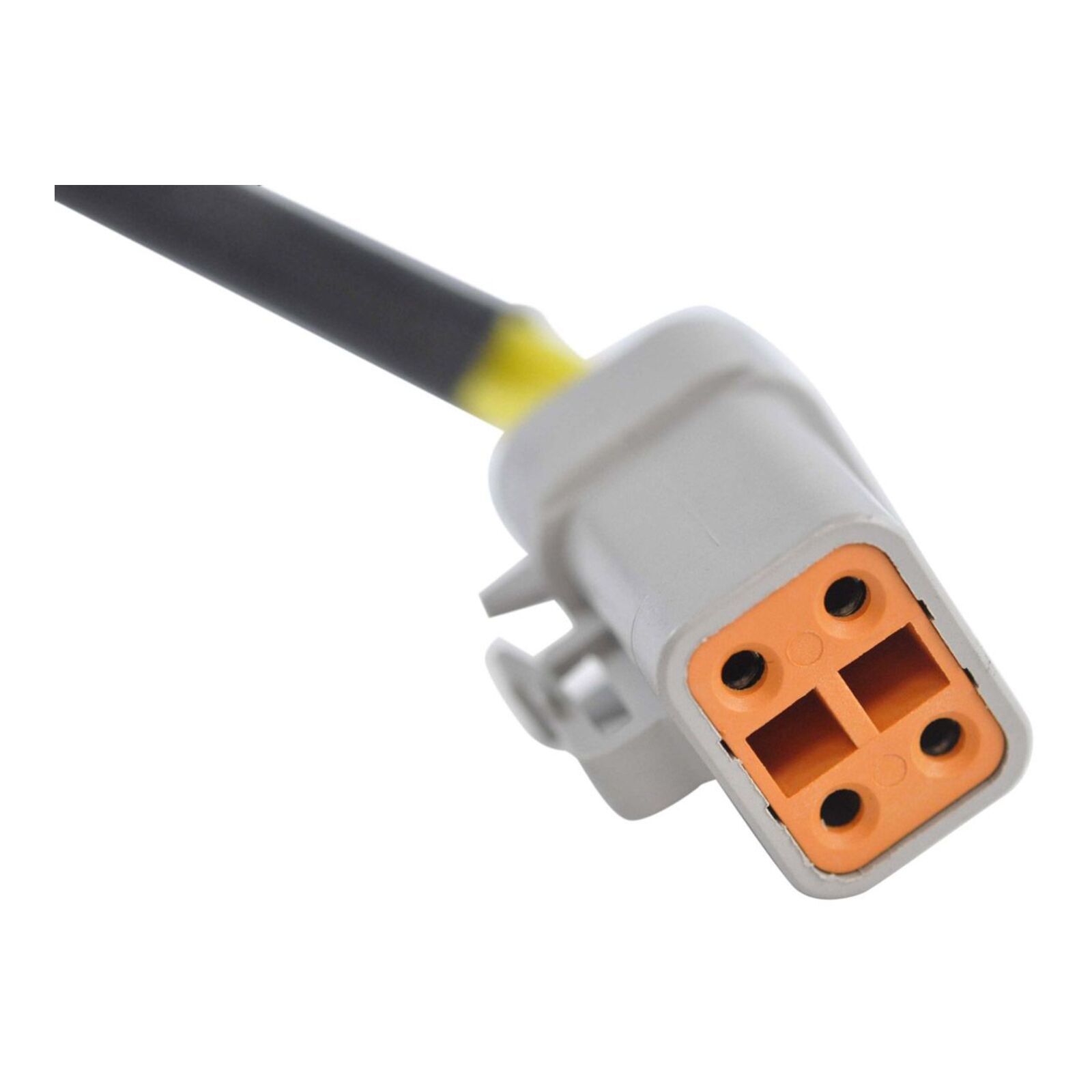

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

(WPS-RMS01267)

SKU WPS-RMS01267
Brand RMSTATOR
