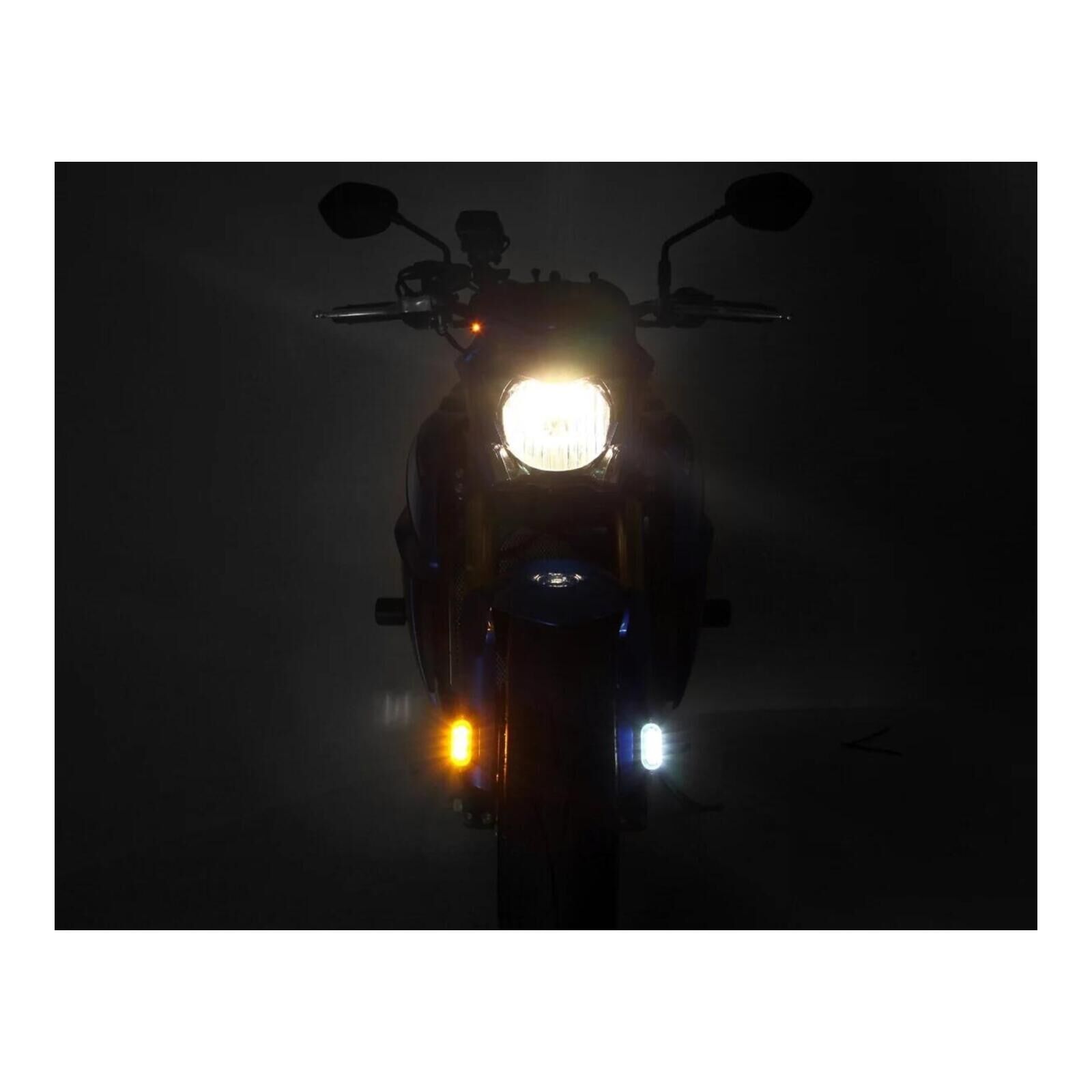

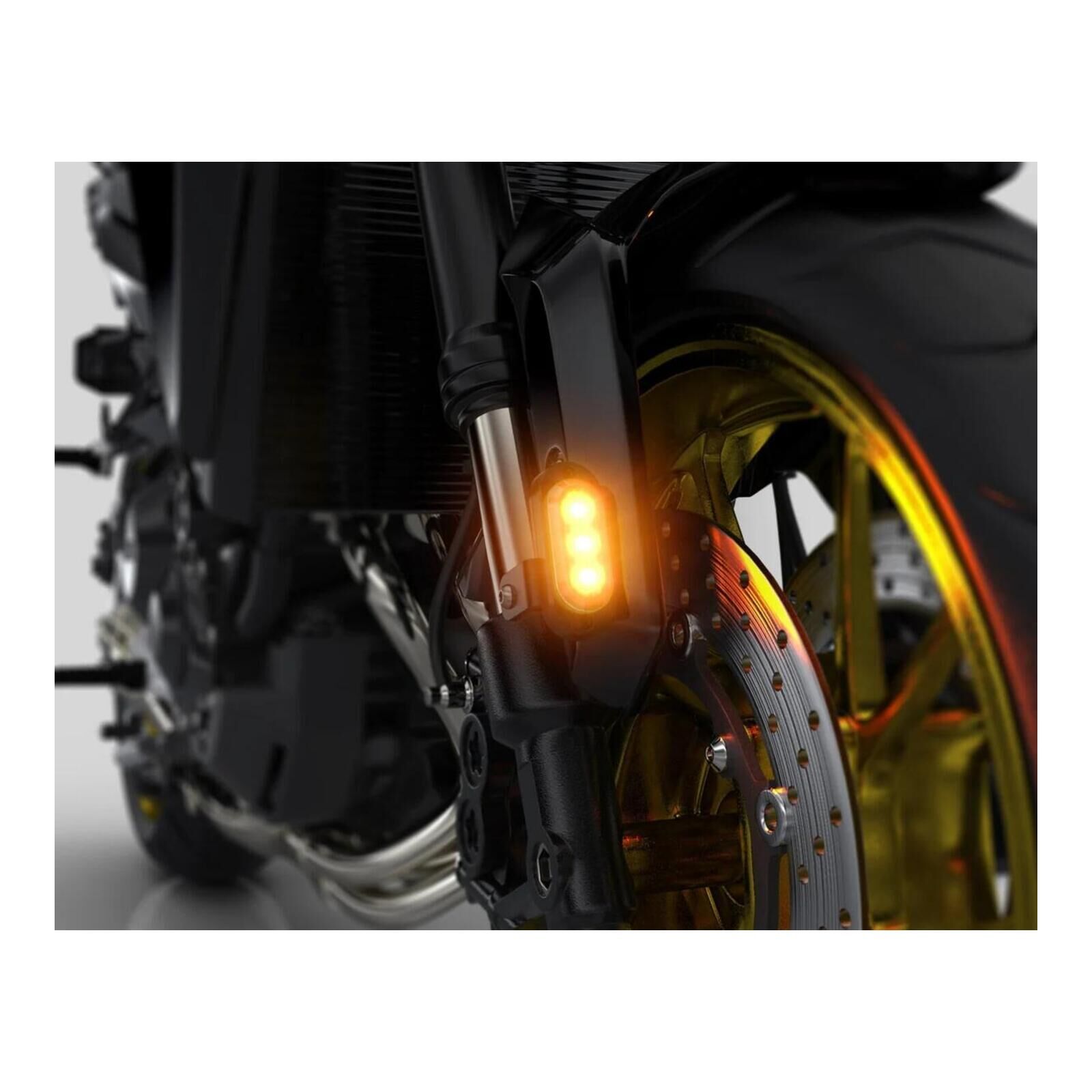

The DENALI T3 Modular Switchback Signal Pods combine white daytime running lights (DRL) red rear running and brake lights and amber turn signals in one versatile lighting system. Front T3 pods feature bright white running lights that switch to amber when the turn signal is activated. Rear T3 pods feature bright red running and brake lights that also switch to amber for signalling.

Unlike conventional switchback signals that use lower-output bi-colour LEDs the T3 uses two separate rows of high-power single-colour LEDs for exceptional brightness. The result is a powerful light pod with an output comparable to 10 W LED driving lights.

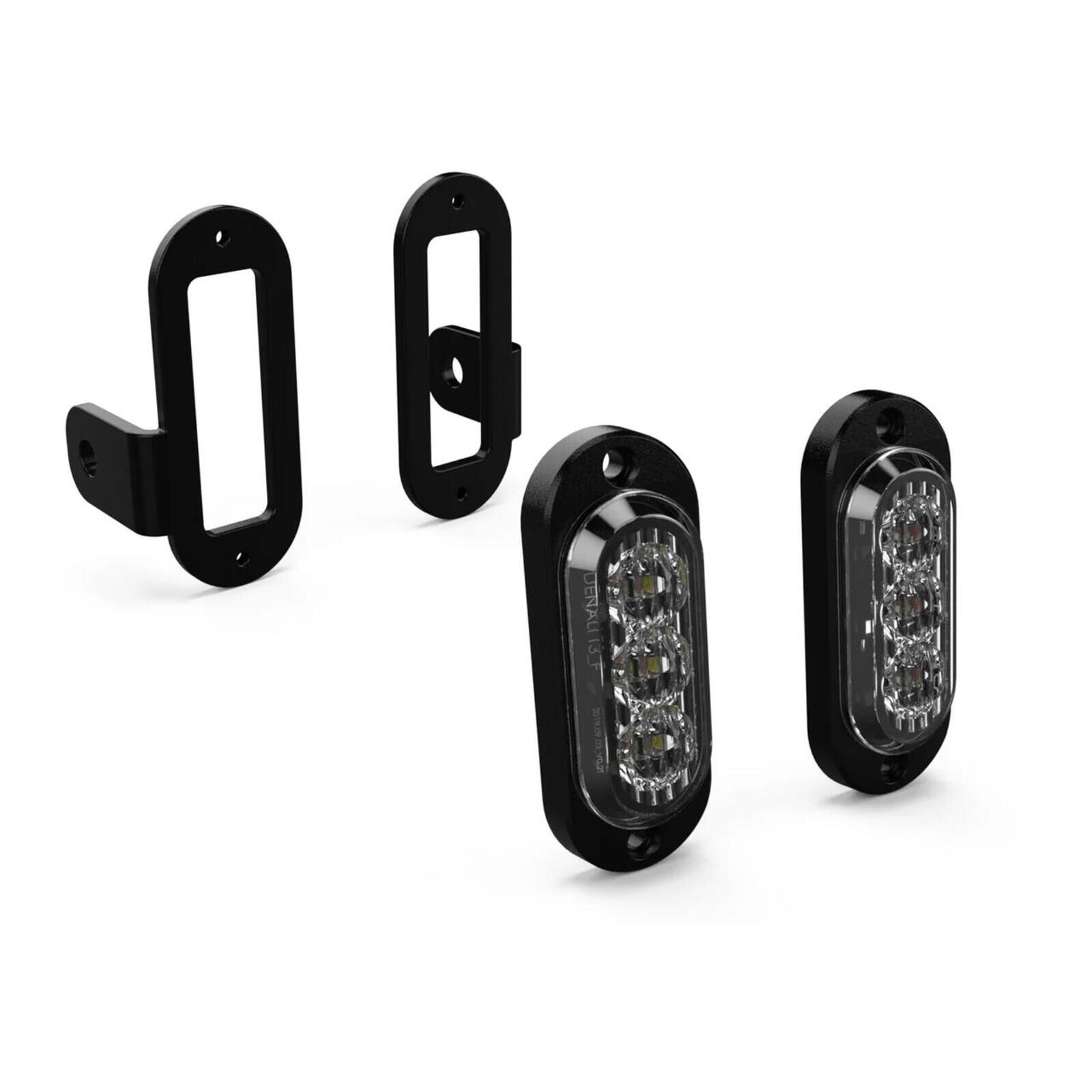

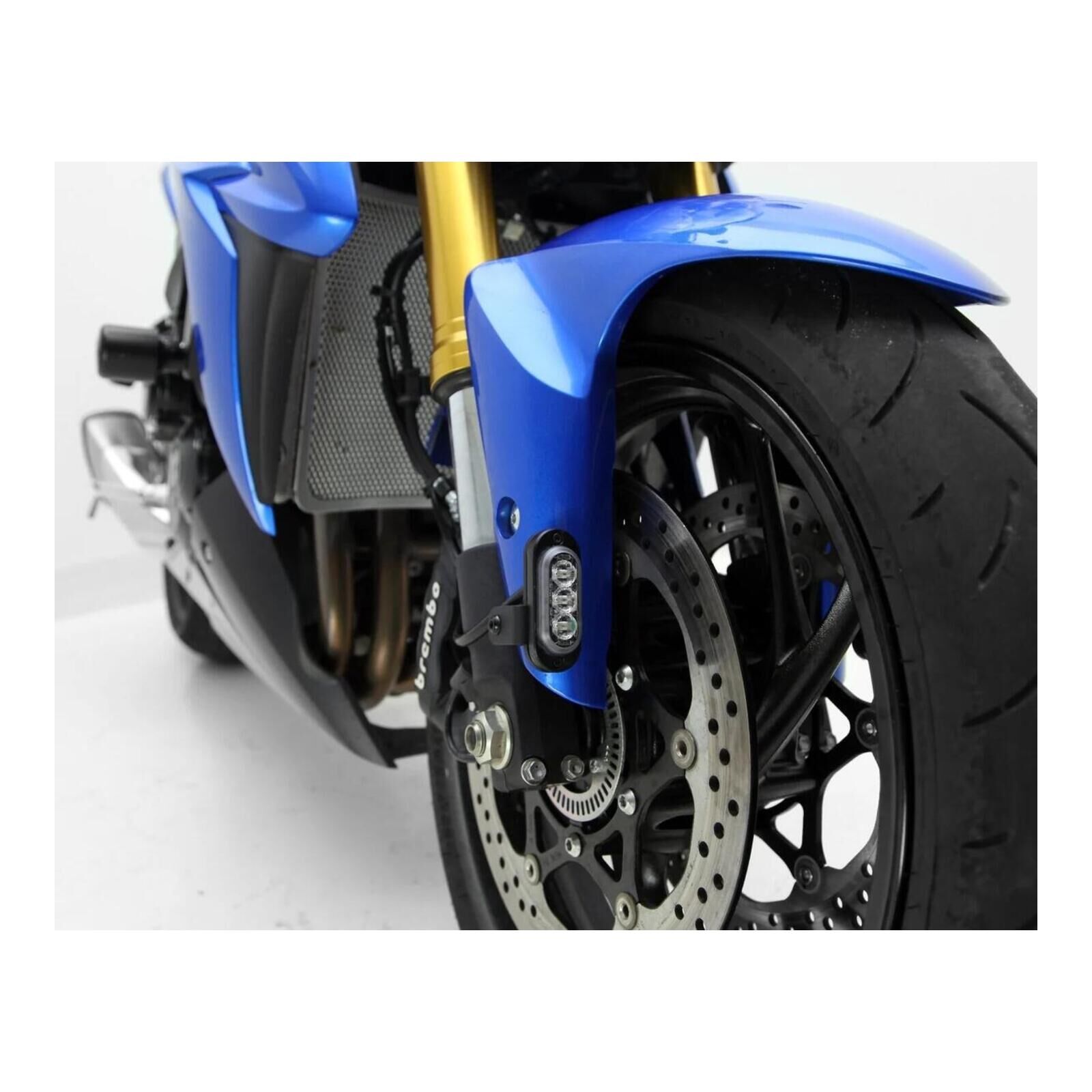

The low-profile modular housing can be mounted in various locations on the front or rear of your vehicle. Dedicated mounting kits are available for handguards front fenders crash bars body panels cases licence plates and rear fenders. This kit includes four self-tapping screws for flush-mounting applications so no additional mounting kit is required for this installation type.

With high-power LEDs and a versatile modular design the DENALI T3 delivers outstanding visibility and flexible mounting options in a compact switchback turn signal.

Features:

  • Switchback Functionality: White daytime running light (DRL) switches to amber turn signal.
  • Dual-Circuit DRL: 50% output on low and 100% output on high.
  • Wide Viewing Angle: 180-degree visibility.
  • High-Power LEDs: Six LEDs per pod.
  • Low-Profile Design: Compact housing for versatile mounting options.
  • Easy Installation: Connects to the vehicle's DRL and turn signal circuits.
  • E-Mark Approved: Approved for DRL and turn signal use.

Specifications:

  • Power Draw: 0.12 A DRL (low) / 0.25 A DRL (high); 0.55 A turn signal
  • Input Voltage: 12 V DC
  • Dimensions: 2.9 × 1.13 × 0.5 in
  • Weight: 0.08 lb
  • Raw Lumens: 870
  • Waterproof Rating: IP67

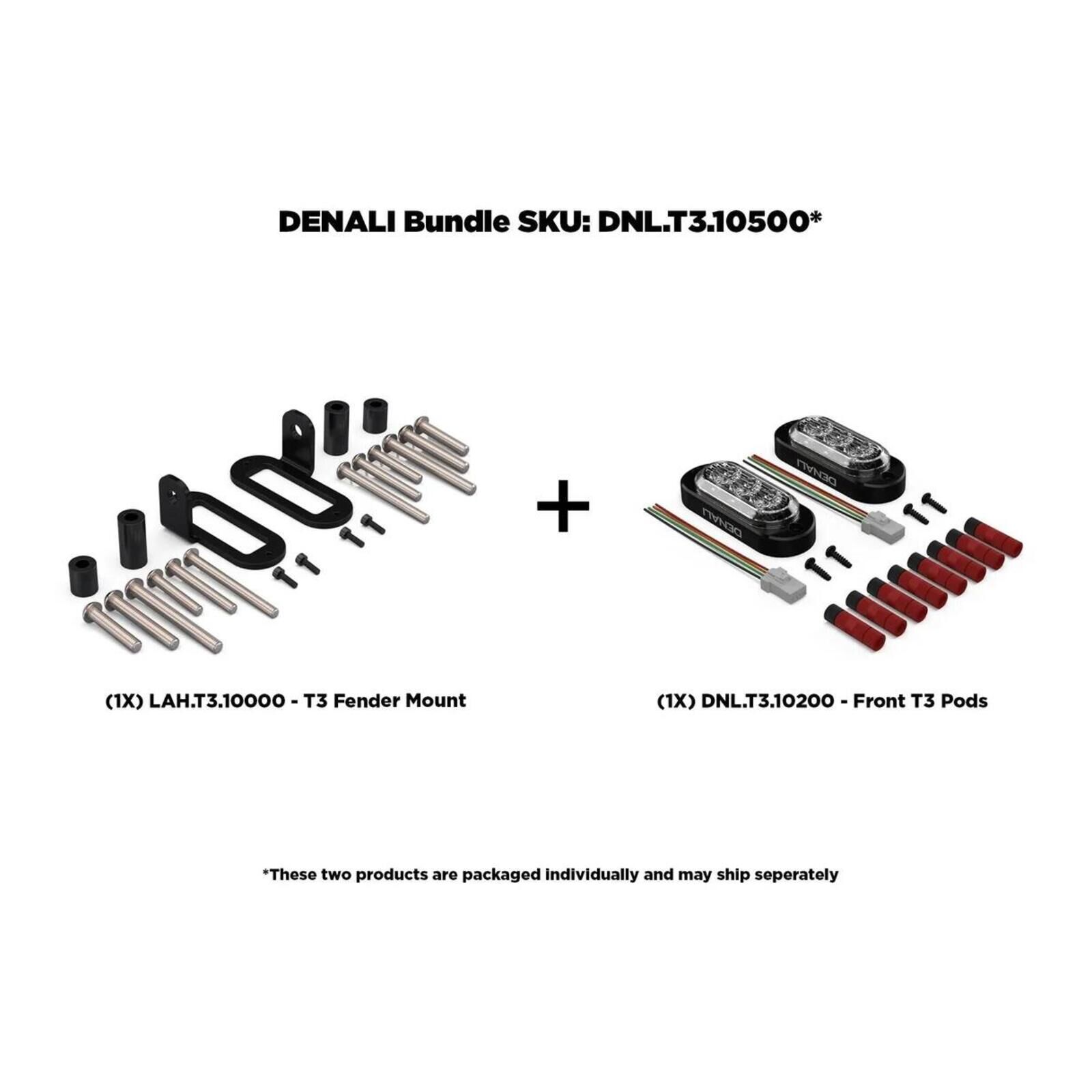

What's Included:

  • 2 × front signal pods
  • 2 × wiring pigtails with waterproof connectors
  • 4 × mounting screws
  • 8 × Posi-Taps
  • DENALI T3 fender light mount for M5 and M6 bolts
  • Illustrated installation instructions

(WPS-DEDNLT310500)

SKU WPS-DEDNLT310500
Barcode # DNL.T3.10500
Brand Denali Lighting
