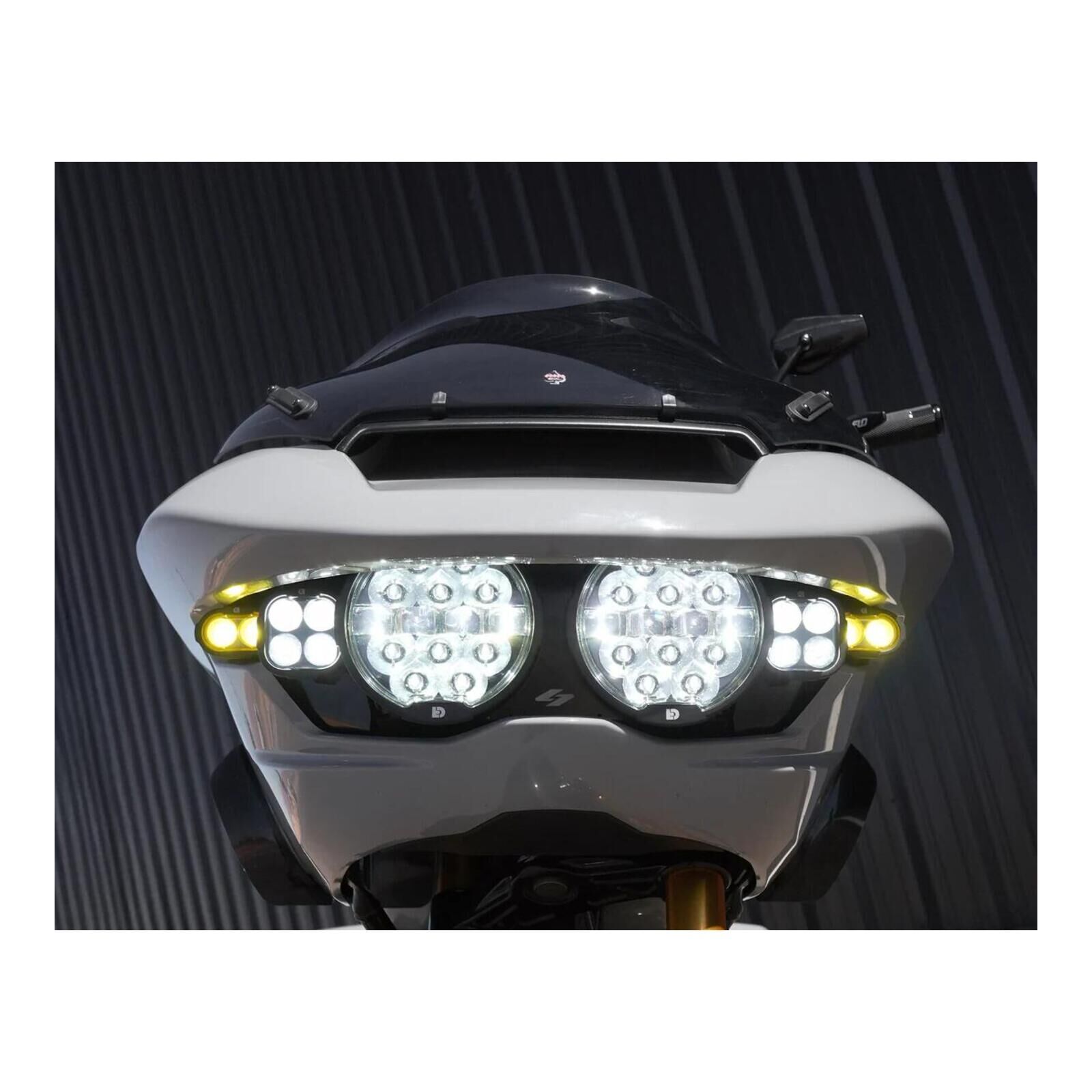

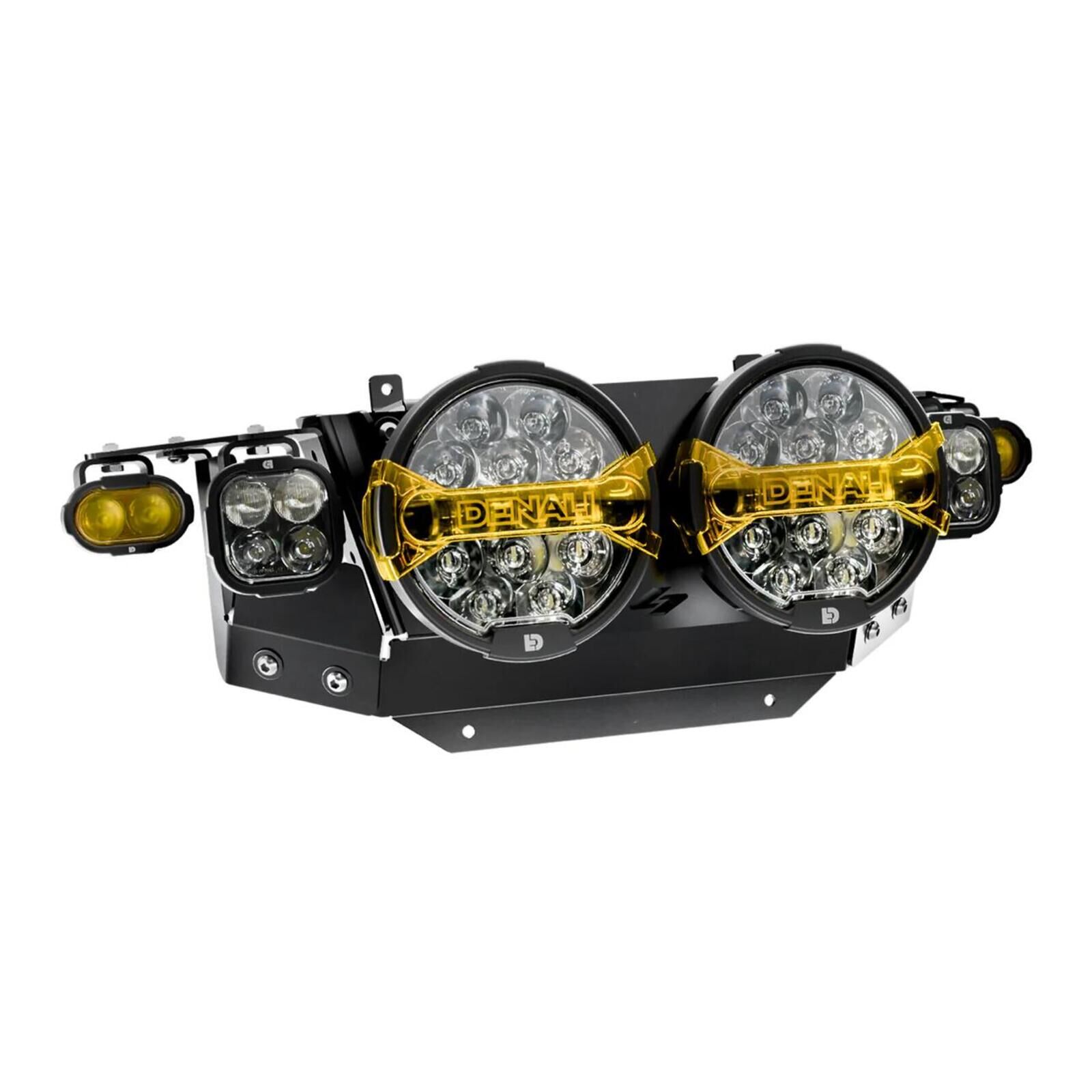

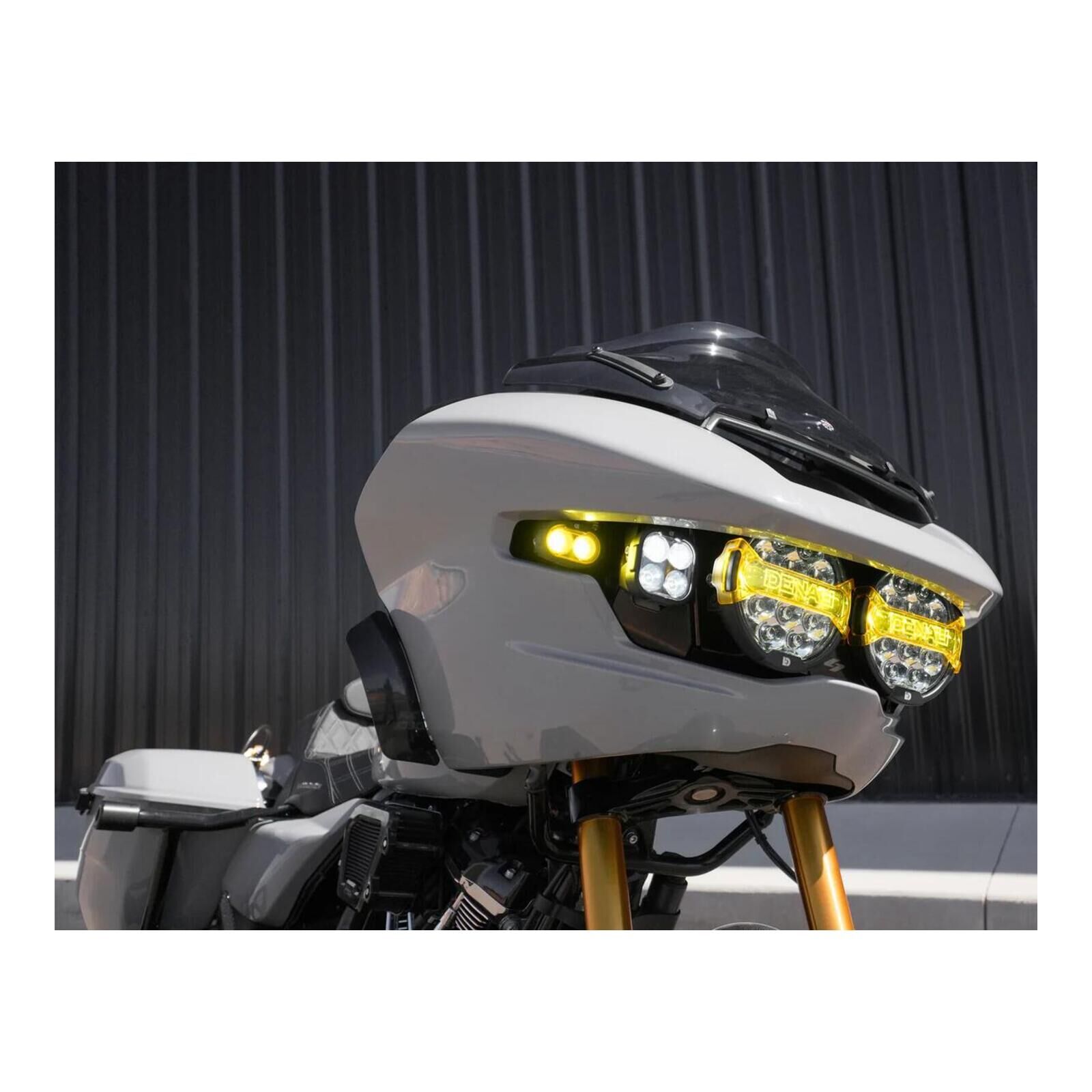

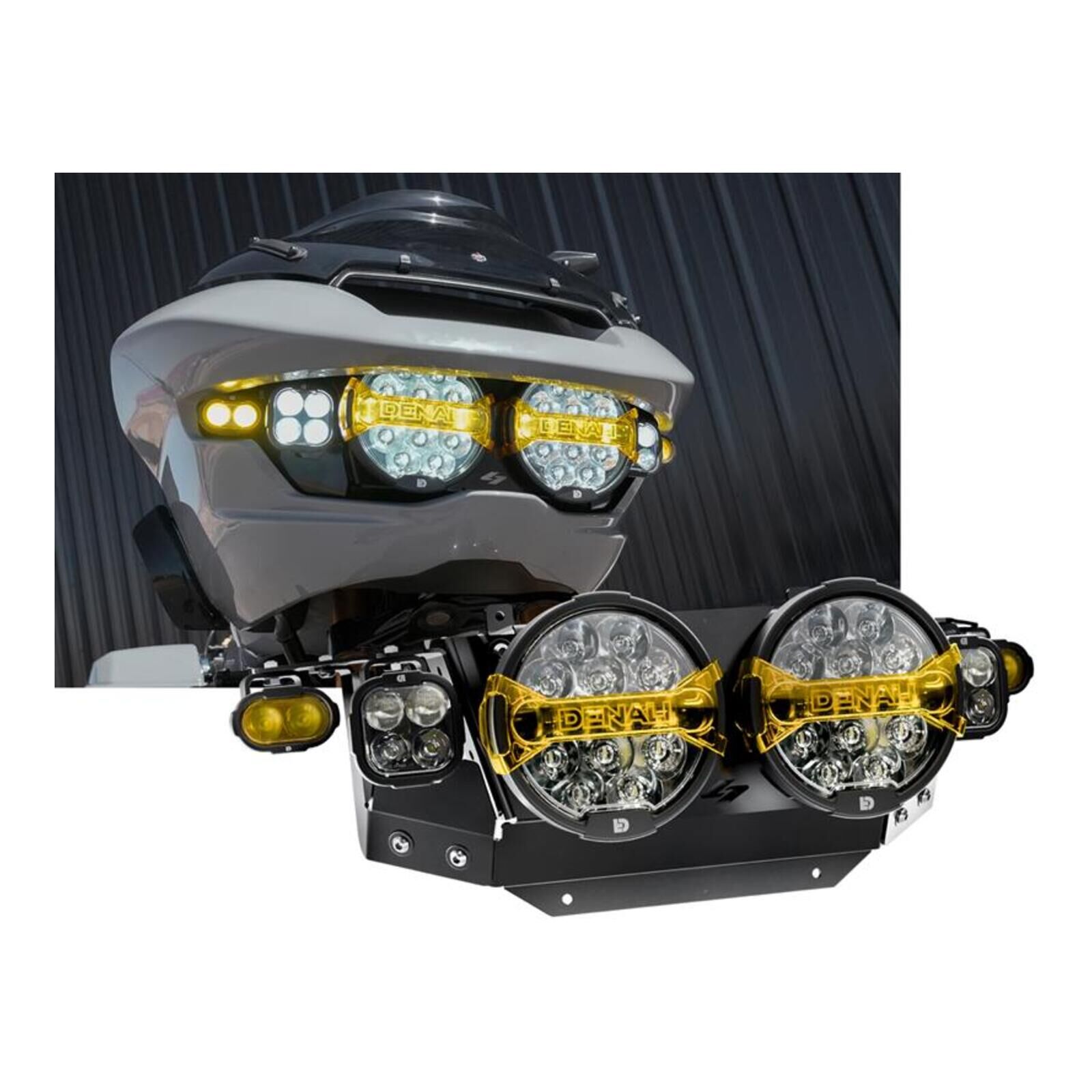

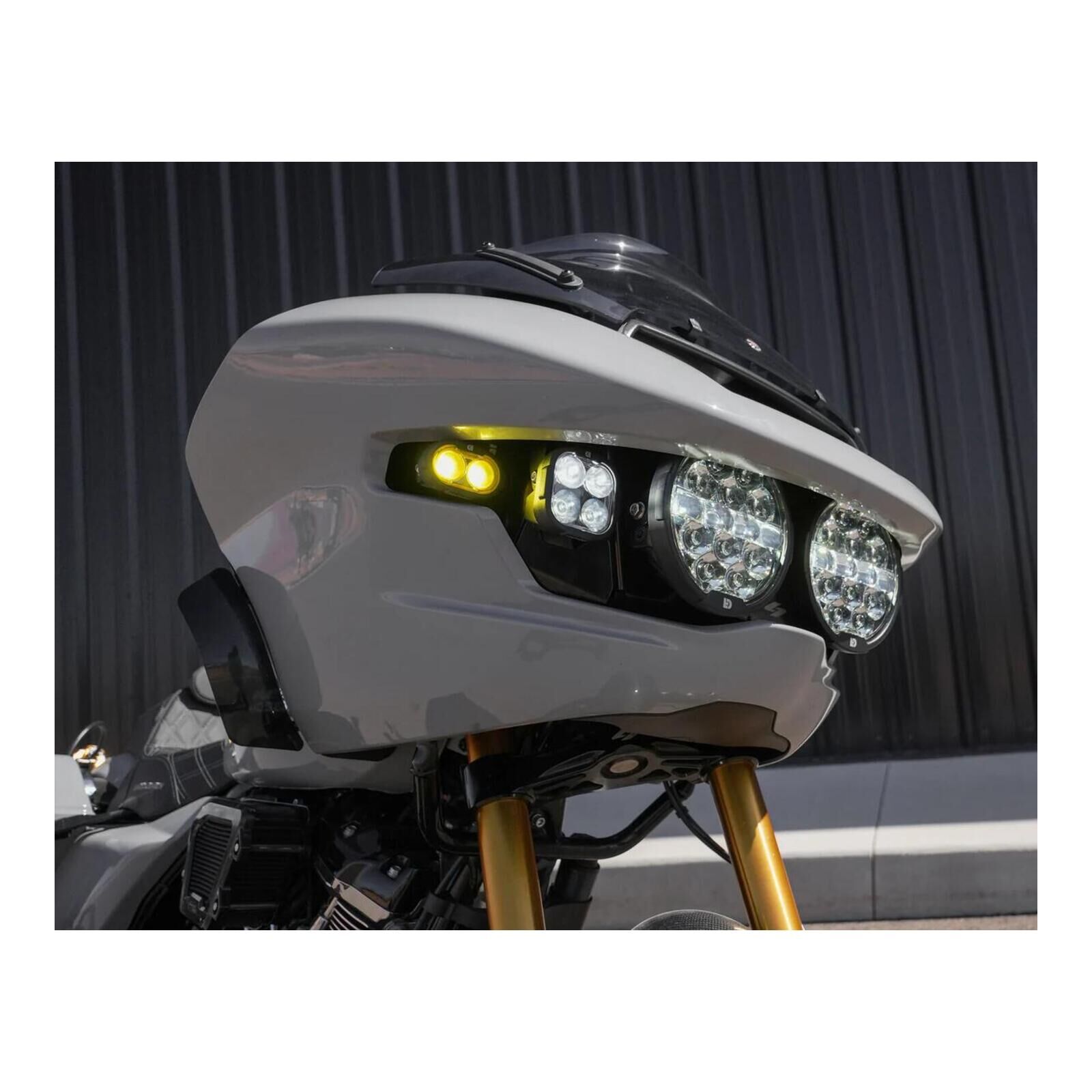

The Full Deck headlight kit is anything but your average headlight upgrade. The clever bracket design by Kraus Moto Co is designed to mount a pair of DENALI D14 Destroyer Headlights a pair of DENALI DL4 Driving Lights and a pair of yellow DENALI DL2 Driving Lights that flash in sync with the factory turn signals. That is over 36 000 total lumens making it the brightest headlight upgrade kit ever released.

The industry-first D14 headlights feature two high beam modes allowing you to choose between a DOT-compliant high beam or an ECE- compliant high beam with double the output. The low beam is both DOT and ECE compliant.

The D14 Headlights also feature a proprietary X-Lens system that lets you change the colour of your low beam from white to yellow or amber for maximum visibility and unmatched style.

For a full description of each DENALI light included in this kit click on the links below.

Features:

• Complete plug-and-play headlight upgrade kit.
• Over 36 000 total lumens.
• Dual high beam design: DOT high beam or Destroyer high beam.
• DOT/SAE and ECE street-legal high and low beams.
• Modular X-Lens system.
• Ultra-slim profile.
• Easy-adjust design.
• IP68 and 69K waterproof submersible and high-pressure spray resistant.
• Limited lifetime warranty*.

Kit Contents:

• 2 x D14 Destroyer Headlights
• 2 x DL4 Driving Lights
• 2 x DL2 Yellow Driving Lights
• 1 x Black powder-coated mounting bracket set with hardware
• 1 x Plug-and-play wiring harness

Note: This complete kit ships directly from DENALI Electronics. The DENALI warranty applies to the lights while the Kraus warranty applies to the mounting and wiring kit.

D14 Specifications - Dual Beam

• LEDs: 28 x 8W high-intensity LEDs.
• Maximum power draw: 210W / 16A (Destroyer high + low).
• Raw lumens: 24 800.
• Operating voltage: 9-32 VDC.
• IP68 and 69K waterproof submersible and high-pressure spray resistant.
• DOT/SAE compliant and ECE R149 approved low beam.
• DOT/SAE compliant high beam (blue wire).
• ECE R149 approved high beam (orange wire).

Destroyer Mode - ECE High + Low

• Raw lumens: 25 800.
• Power draw: 210W.
• Beam distance: 1 950 ft.
• Beam width: 300 ft.

DOT High Beam Mode - DOT High + Low

• Raw lumens: 15 350.
• Power draw: 110W.
• Beam distance: 1 105 ft.
• Beam width: 300 ft.

DOT and ECE Low Beam Only

• Raw lumens: 6 724.
• Power draw: 64W.
• Beam distance: 689 ft.
• Beam width: 300 ft.

DL4 Specifications - Pair

• LEDs: Cree XPL HI (8W each).
• Power: 64W.
• Amperage draw: 5.4A.
• Raw lumens: 6 800.
• Beam distance: 1 091 ft (333m).
• Beam width: 209 ft (64m).
• Colour temperature: 6000K.
• IP68 and 69K waterproof submersible and high-pressure spray resistant.

DL2 Specifications - Pair

• LEDs: Cree XPL2 HD (8W each).
• Power: 32W.
• Amperage draw: 2.7A.
• Raw lumens: 3 400.
• Beam distance: 173 ft (53m).
• Beam width: 113 ft (35m).
• Operating voltage: 9-32 VDC.
• IP68 and 69K waterproof submersible and high-pressure spray resistant.

Fitments

• Harley-Davidson Road Glide CVO (2023+).
• Harley-Davidson Road Glide (2024+).
• Harley-Davidson Road Glide (2025+).
• Harley-Davidson Road Glide Limited (2026).
• Harley-Davidson CVO Road Glide ST (2025-2026).
• Harley-Davidson Road Glide (2025-2026).
