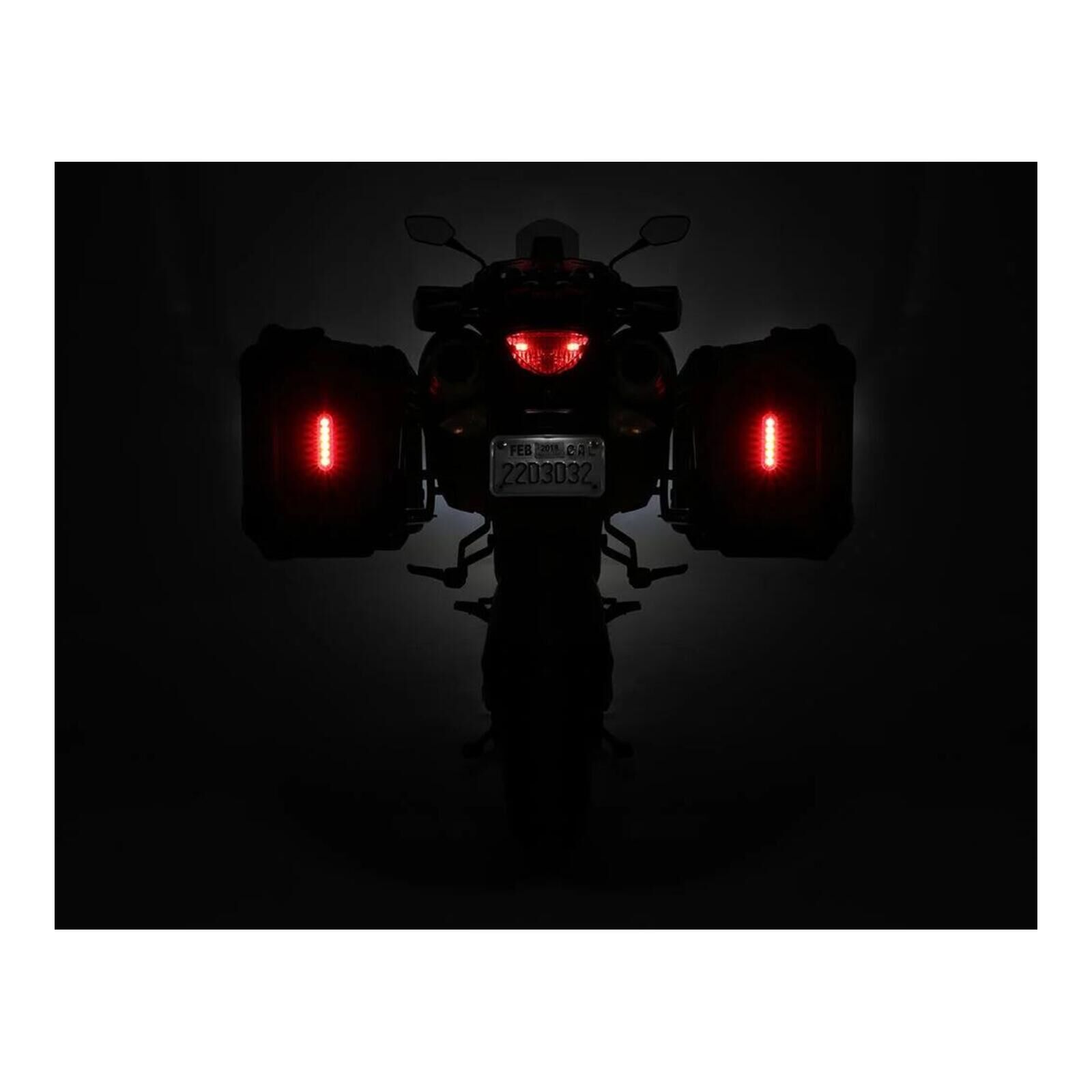

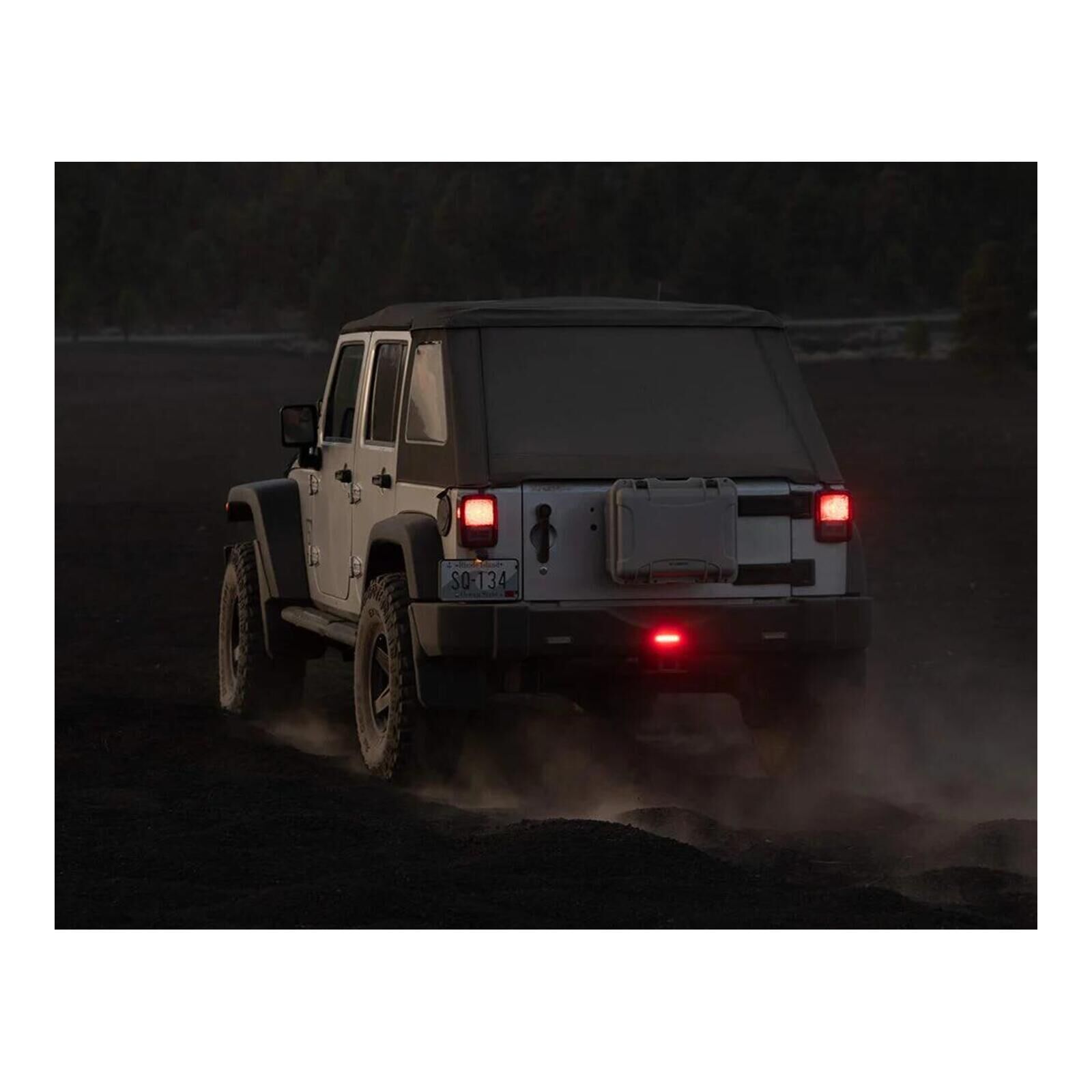

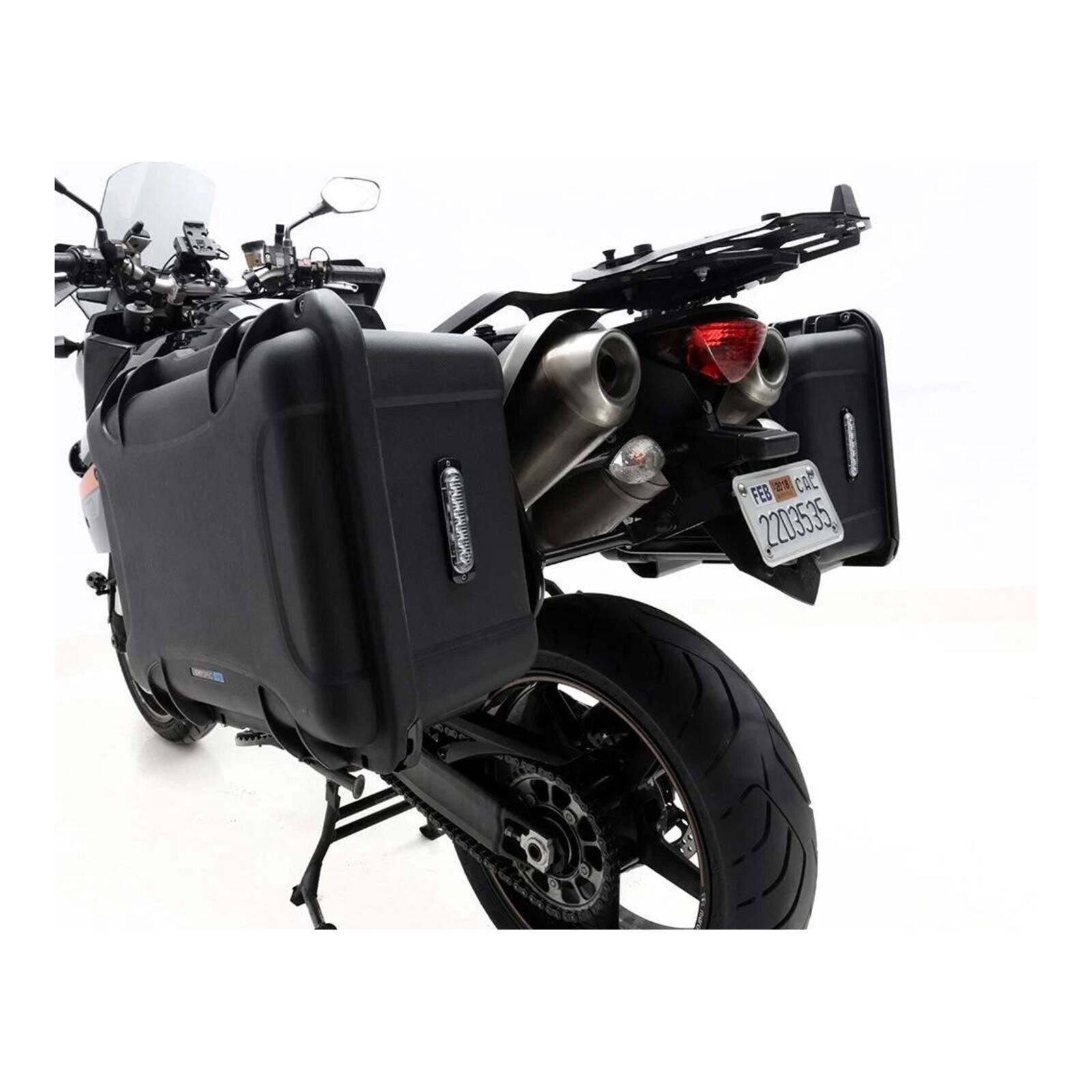

The DENALI B6 Flush Mount Auxiliary LED Brake Light Kit is designed to mount a single B6 Pod to any flat surface on your vehicle. The included silicone gasket ensures a watertight seal while the supplied hardware supports both through-bolting and blind self-tapping installation in plastic.

Designed to deliver maximum light output in a compact low-profile housing the B6 provides exceptional brightness while remaining discreet once installed. It features a waterproof micro connector a plug-and-play splitter and Posi-Tap connectors for easy installation. Connect it directly to a DENALI CANsmart™ Controller or integrate it into any vehicle brake light circuit.

When connected to a DENALI CANsmart™ Controller the B6 offers programmable brake light flash patterns and deceleration-activated automatic brake light functionality enhancing rear visibility and rider safety.

Features:

  • Dual-circuit operation for running and brake lights.
  • 180-degree viewing angle.
  • Six high-power LEDs.
  • Low 6-watt power consumption.
  • Compact low-profile design.
  • Waterproof mounting gasket included.
  • Easy connection to the vehicle brake light circuit.
  • Plug-and-play waterproof connection to the DENALI CANsmart™ Controller.

Specifications:

  • Power draw: 0.5 A.
  • Voltage: 12 V DC.

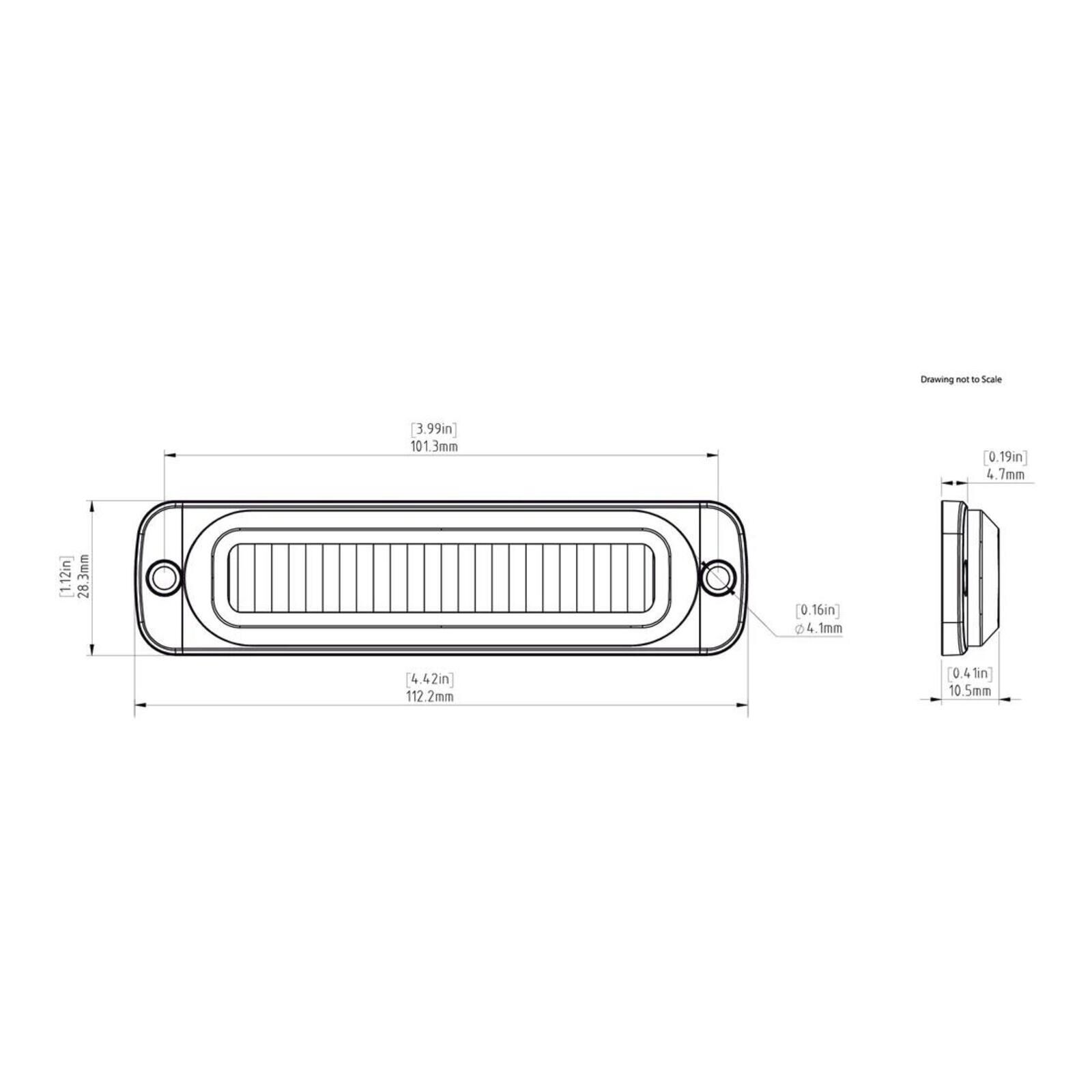

  • Dimensions: 4.4 × 1.1 × 0.42 inches.
  • Raw light output: 870 lumens.
  • Waterproof rating: IP67.

Additional Features with DENALI CANsmart™ Controller:

  • Programmable deceleration-activated brake light.
  • Programmable brake light flash patterns.
  • Plug-and-play waterproof connection.

What's in the Box:

  • 1 × DENALI B6 Red Brake Light Visibility Pod (DNL.B6.003).
  • 1 × Flush Mount for DRL and B6 Visibility Pods (LAH.DRL.10200).

Note: The kit components are packaged separately and may ship in separate boxes.

(WPS-DEDNLB610200)

SKU WPS-DEDNLB610200
Barcode # DNL.B6.10200
Brand Denali Lighting
